Fuel Rail Pressure Sensor (G1574258): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Make sure that the tools and equipment are clean, free of foreign material and lubricant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Refer to: SECONDARY BULKHEAD RIGHT PANEL
Refer to: FUEL SYSTEM PRESSURE RELEASE - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
Refer to: FUEL INJECTION COMPONENT CLEANING (G1202495)
CAUTION: Cap the coolant pipe ends immediately to minimize coolant loss.

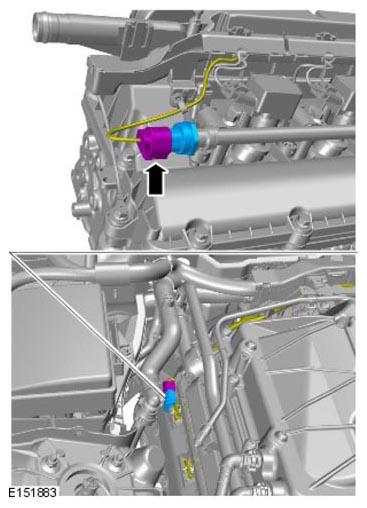

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

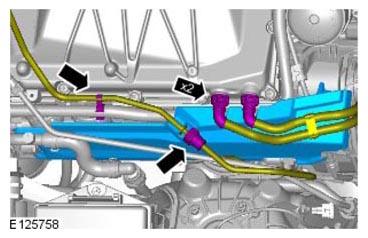

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping fluids.

NOTE: During lubrication, keep the component vertically as shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate with Molykote W15 as shown.

Torque : 38 Nm
