Engine Control Module (G1550192): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

The following step(s) applies to:

All vehicles

Refer to: SPECIFICATIONS
Refer to: COWL VENT SCREEN

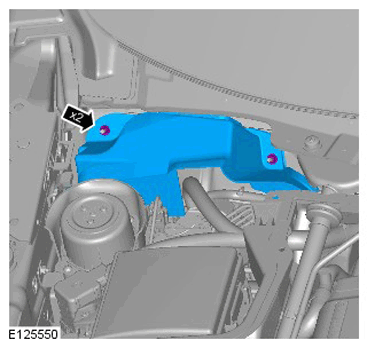

CAUTION: RH illustration shown, LH is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

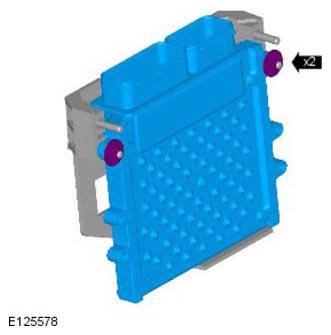

Torque : 7 Nm
CAUTION: Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

NOTE: LH illustration shown, RH is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

Left-hand drive vehicles

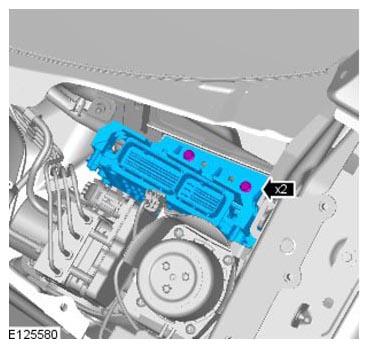

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm

The following step(s) applies to:

Right-hand drive vehicles

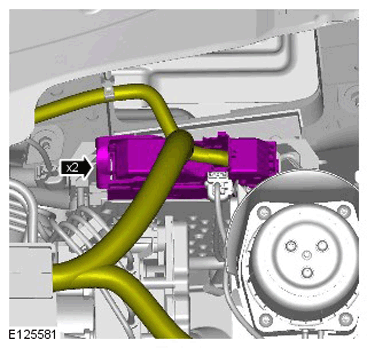

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm

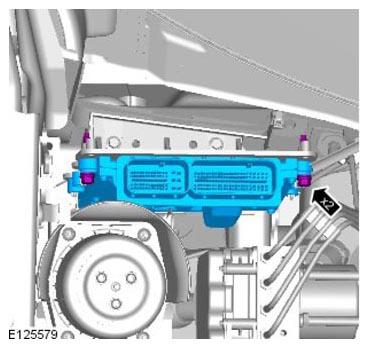

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
