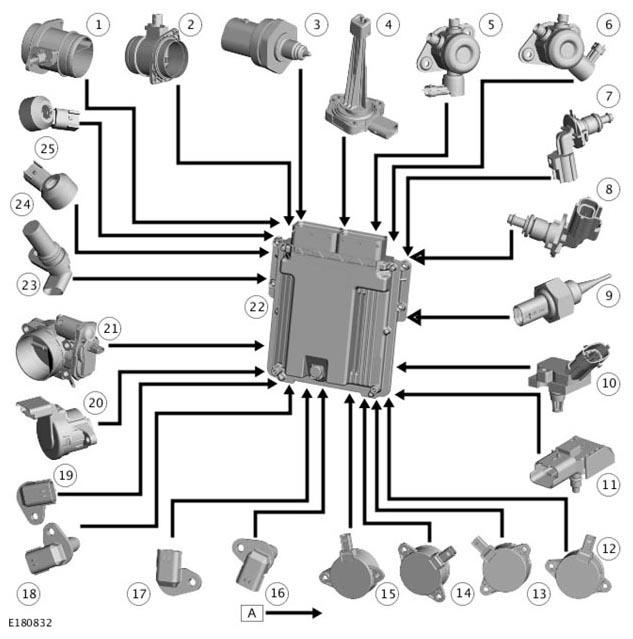

Control Diagram - Sheet 2 Of 2
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Mass Air Flow and Temperature (MAFT) sensor - left |
| 2 | Mass Air Flow and Temperature (MAFT) sensor - right |
| 3 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 4 | Oil level and temperature sensor |
| 5 | High Pressure (HP) fuel pump |
| 6 | High Pressure (HP) fuel pump |
| 7 | Engine Coolant Temperature (ECT) sensor 1 |
| 8 | Engine Coolant Temperature (ECT) sensor 2 |
| 9 | Charge air temperature sensor |
| 10 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 11 | Manifold Absolute Pressure (MAP) sensor |
| 12 | Variable Camshaft Timing (VCT) actuator - inlet - Bank 2 |
| 13 | Variable Camshaft Timing (VCT) actuator - exhaust - Bank 2 |
| 14 | Variable Camshaft Timing (VCT) actuator - inlet - Bank 1 |
| 15 | Variable Camshaft Timing (VCT) actuator - exhaust - Bank 1 |
| 16 | Camshaft Position (CMP) sensor - inlet - Bank 2 |
| 17 | Camshaft Position (CMP) sensor - exhaust - Bank 2 |
| 18 | Camshaft Position (CMP) sensor - inlet - Bank 1 |
| 19 | Camshaft Position (CMP) sensor - exhaust - Bank 1 |
| 20 | Bypass actuator |
| 21 | Electric throttle |
| 22 | Engine Control Module (ECM) |
| 23 | Crankshaft Position (CKP) sensor |
| 24 | Knock sensor - Bank 2 |
| 25 | Knock sensor - Bank 1 |
