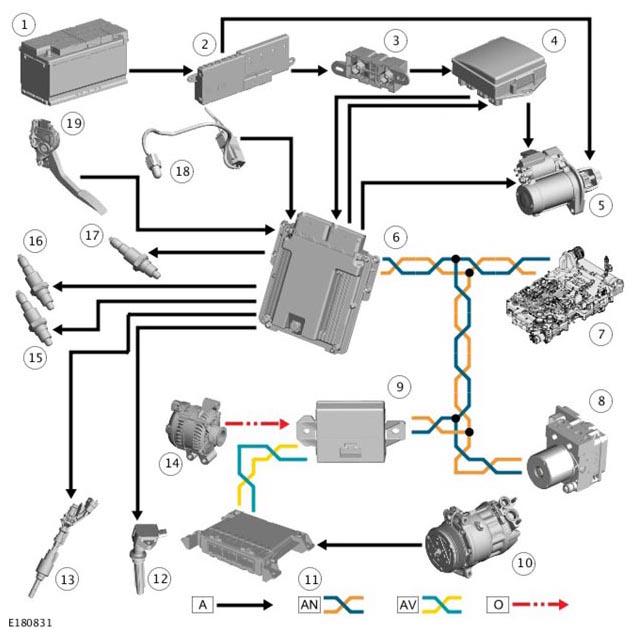

Control Diagram - Sheet 1 Of 2
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) (250 A megafuse) |
| 3 | Megafuse (500A) |
| 4 | Engine Junction Box (EJB) |
| 5 | Starter motor |
| 6 | Engine Control Module (ECM) |
| 7 | Transmission Control Module (TCM) |
| 8 | Anti-lock Brake System (ABS) control module |
| 9 | Gateway Module (GWM) |
| 10 | Air conditioning compressor clutch |
| 11 | HVAC Control Module |
| 12 | Ignition coil (6 off) |
| 13 | Fuel injector (6 off) |
| 14 | Generator |
| 15 | Heated oxygen sensor (HO2S) - Pre catalyst (2 off) |
| 16 | Heated oxygen sensor (HO2S) - Mid catalyst (2 off) |
| 17 | Heated oxygen sensor (HO2S) - Post catalyst (2 off) |
| 18 | Ambient Air Temperature (AAT) sensor |
| 19 | Accelerator Pedal Position (APP) sensor |
