Component Location - Sheet 4 Of 4

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

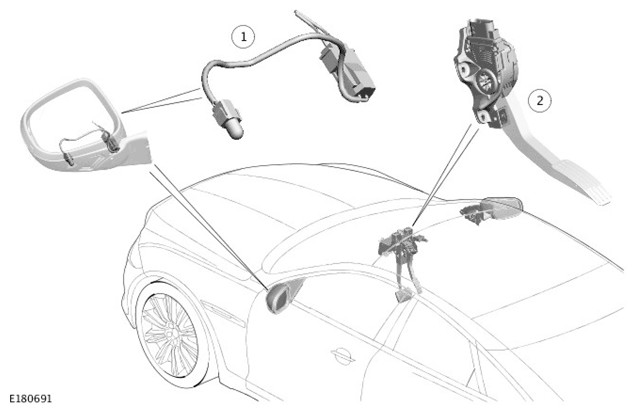

G11293272Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Ambient Air Temperature (AAT) sensor
2 Accelerator Pedal Position (APP) sensor
