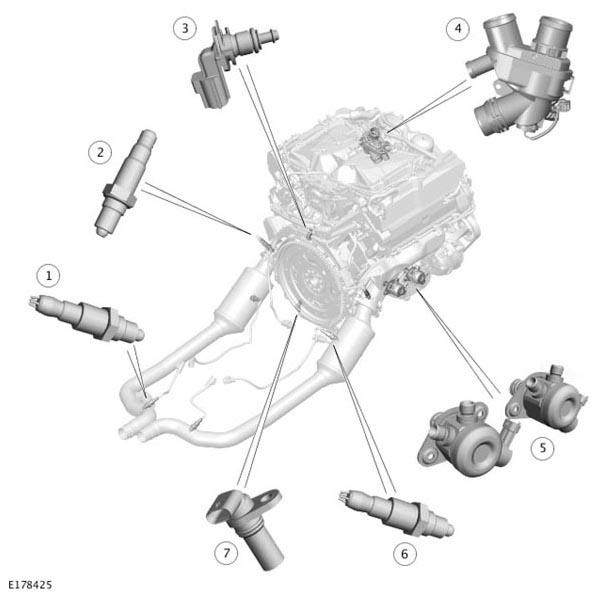

Component Location - Sheet 3 Of 4
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heated Oxygen Sensor (HO2S) Post-catalyst (2 off) |
| 2 | Heated Oxygen Sensor (HO2S) Pre-catalyst (2 off) |
| 3 | Engine Coolant Temperature (ECT) sensor |
| 4 | Electric thermostat |
| 5 | High Pressure (HP) Fuel pump (2 off) |
| 6 | Heated Oxygen Sensor (HO2S) Mid-catalyst (2 off) |
| 7 | Crankshaft Position (CKP) sensor |
