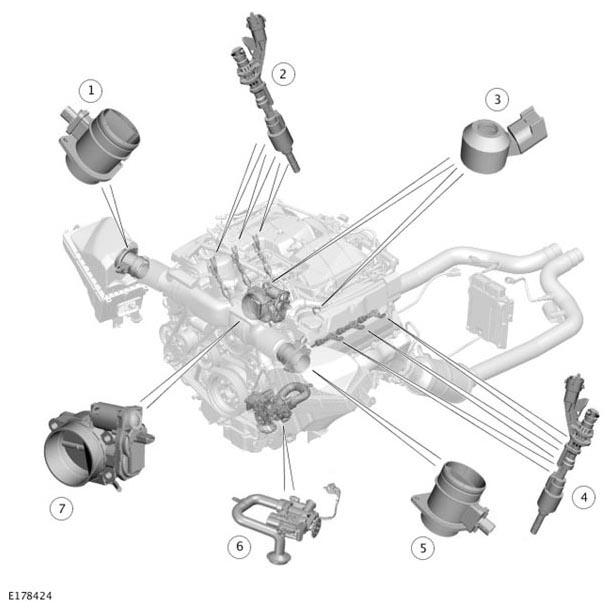

Component Location - Sheet 2 Of 4
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Right Mass Air Flow and Temperature (MAFT) sensor |
| 2 |
Fuel injector (3 off) - Bank 1 |
| 3 |
Knock sensor (2 off) |
| 4 |
Fuel injector (3 off) - Bank 2 |
| 5 |
Left Mass Air Flow and Temperature (MAFT) sensor |
| 6 |
Variable electric oil pump |
| 7 |
Electric throttle |
