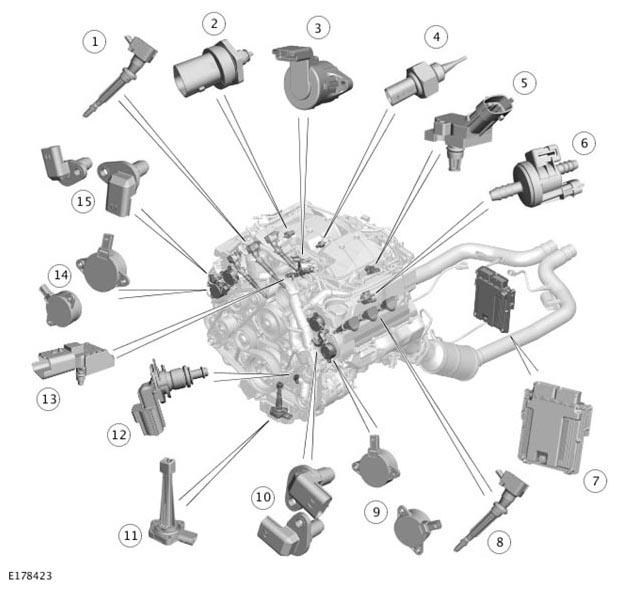

Component Location - Sheet 1 Of 4
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Ignition coil (3 off) - Bank 1 |
| 2 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 3 | Bypass valve |
| 4 | Charge air temperature sensor |
| 5 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 6 | Purge valve |
| 7 | Engine Control Module (ECM) |
| 8 | Ignition coil (3 off) - Bank 2 |
| 9 | Variable Camshaft Timing (VCT) actuator (2 off) - Bank 2 |
| 10 | Camshaft Position (CMP) sensor (2 off) - Bank 2 |
| 11 | Oil level sensor |
| 12 | Engine Coolant Temperature (ECT) sensor |
| 13 | Manifold Absolute Pressure (MAP) sensor |
| 14 | Variable Camshaft Timing (VCT) actuator (2 off) - Bank 1 |
| 15 | Camshaft Position (CMP) sensor (2 off) - Bank 1 |
