Low Pressure Fuel Pump Assembly : Removal
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Removal steps in this procedure may contain installation details.
-
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
- Disconnect the 12 V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
-
Refer to: FUEL SYSTEM PRESSURE RELEASE - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL

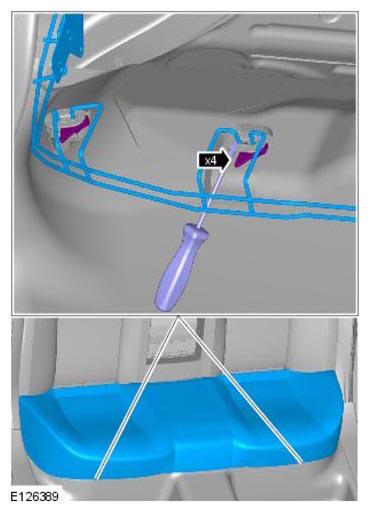

Remove the second row seat cushion.

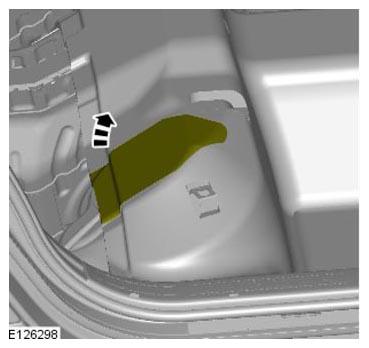

Reposition the carpet.

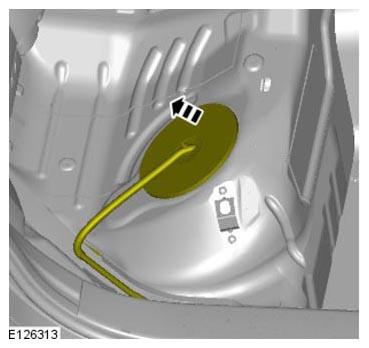

Reposition the access cover.
-
CAUTION: Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

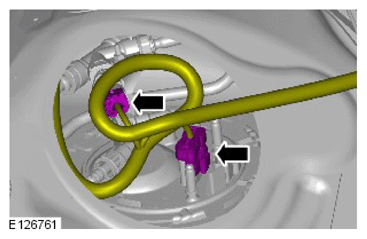

Disconnect the 2 electrical connectors.
-
CAUTION: Be prepared to collect escaping fuel.NOTE: Make sure that all openings are sealed. Use new blanking caps.

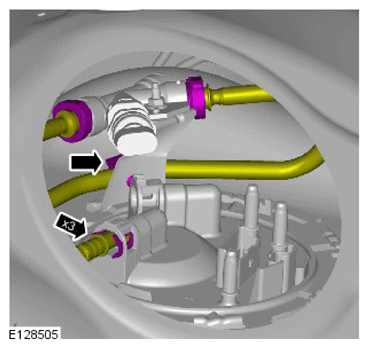

Disconnect the 4 pipes.
-
NOTE: Note the position of the retaining ring.

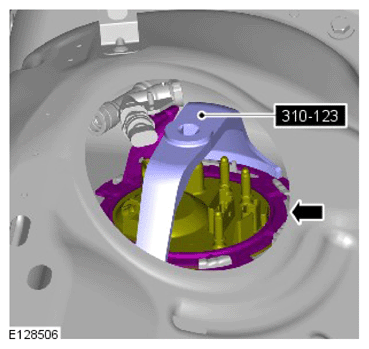

Remove the retaining ring.
Special Tool(s): 310-123

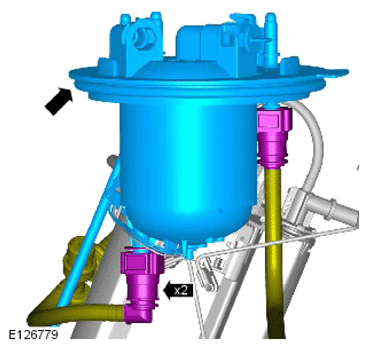

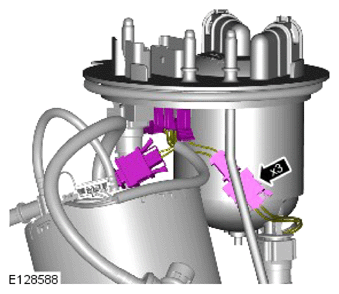

Disconnect the 3 electrical connectors.
- Disconnect the 2 pipes.
- Remove and discard the O-ring seal.
Renew Part: Fuel pump O-ring seal Quantity: 1 .
CAUTION: A new O-ring seal is to be installed.-

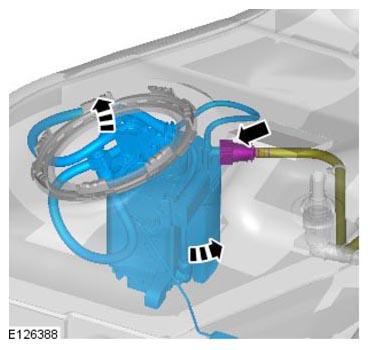

WARNING: The spilling of fuel is unavoidable during this operation. Make sure that all necessary precautions are taken to prevent fire and explosion.CAUTION: Take extra care not to damage the fuel tank level sensor float and arm.
Disconnect the pipe.
