High Pressure Fuel Pump 2 - AWD (G1574228): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

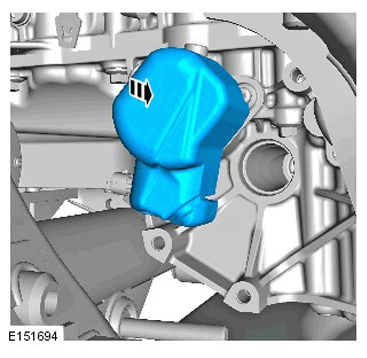

NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen the Torx screws half a turn each.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Install new high-pressure fuel supply lines.
- Lubricate only the union threads with clean engine oil.
NOTE:
- Remove and discard the blanking caps.
- Engine shown removed for clarity.
- Install the bolt and unions fully finger tight before final tightening.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
Lower the vehicle.
NOTE:
- Do not tighten at this stage.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque
  - Unions (1): 21 Nm
  - M6 (2): 11 Nm
  - M8 (3): 25 Nm
  - M5 nut (4): 6 Nm
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21 Nm
NOTE:
- Install the bolt and unions finger tight before final tightening.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque
  - Unions: 21 Nm
  - M6: 11 Nm
NOTE: The cover is removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21 Nm
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque
- M10: 29 Nm
- M6: 11 Nm
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Refer to: GENERATOR
Refer to: RIGHT ENGINE MOUNT - AWD (G1574170)
Refer to: FRONT RIGHT HALFSHAFT
Refer to: ENGINE UNDERSHIELD
Lower the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Lubricate only the union threads with clean engine oil.
NOTE:
- Do not tighten at this stage.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque
- Unions: 21 Nm
- Bolts: 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21 Nm
WARNING: Be prepared to collect escaping fluid.

CAUTION: Remove and discard the blanking cap.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: RIGHT AIR CLEANER (G1549757)
WARNING: Be prepared to collect escaping fluids.

CAUTION: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Be prepared to collect escaping fluid.

CAUTION: Remove and discard the blanking caps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1779628)
