High Pressure Fuel Pump 1 - AWD (G1574229): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Before any work is carried out on the fuel system, ground the vehicle to earth and maintain the ground connection until the work is complete.
Do not carry out any repairs to the fuel system with the engine running. Failure to follow this instruction may result in personal injury.
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable mixtures are always present and may ignite. Failure to follow these instructions may result in personal injury.
After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
Wait at least 30 seconds after the engine stops before commencing any repair to the high-pressure fuel injection system. Failure to follow this instruction may result in personal injury.

CAUTION:

Make sure that tools and equipment are clean and free of foreign material and lubricant.
Do not allow the unions to hit the olive ends of the high-pressure fuel supply line as this may damage the ends of the high-pressure fuel supply line and allow foreign matter to enter the fuel injection system.
Do not remove the fuel rail pressure sensor from the fuel injection diverter rail.
Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Refer to: FUEL SYSTEM PRESSURE RELEASE - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1779628)
Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
Refer to: FUEL INJECTION COMPONENT CLEANING (G1202495)

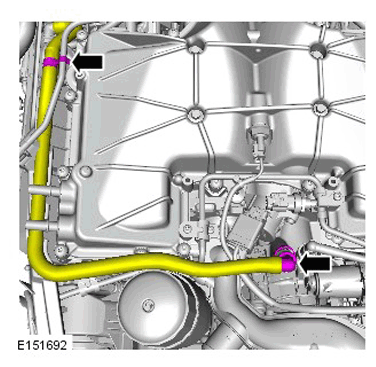

CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

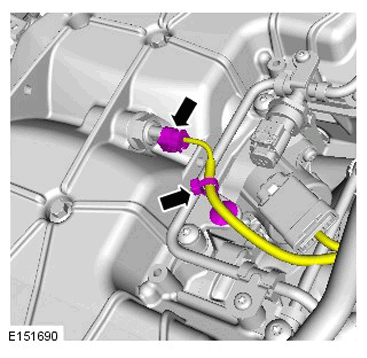

WARNING: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: RIGHT AIR CLEANER (G1549757)
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD
Refer to: FRONT RIGHT HALFSHAFT
Refer to: RIGHT ENGINE MOUNT - AWD (G1574170)
Refer to: GENERATOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

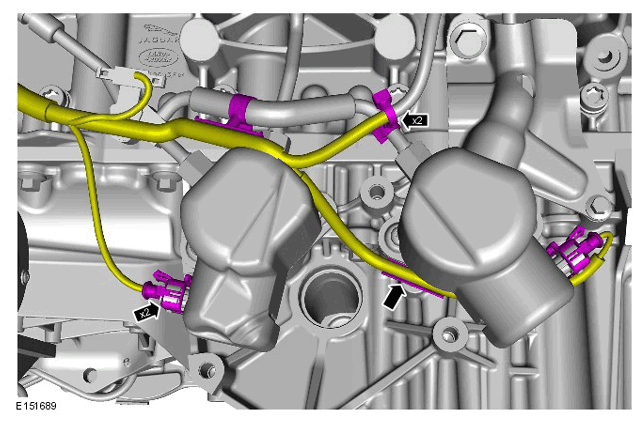

NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

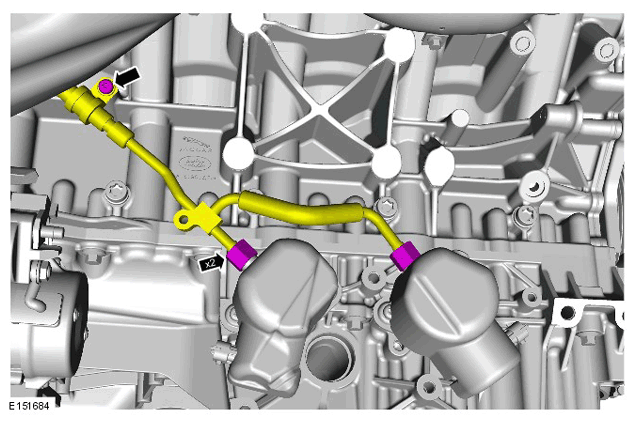

CAUTION:
- Be prepared to collect escaping fluids.
- Remove and discard the high-pressure fuel supply lines.
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

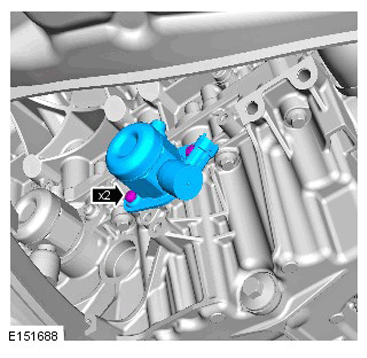

Loosen the Torx screws a turn each at a time.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
