High Pressure Fuel Pump 1 - AWD (G1574229): Installation

The following step(s) applies to:

All vehicles

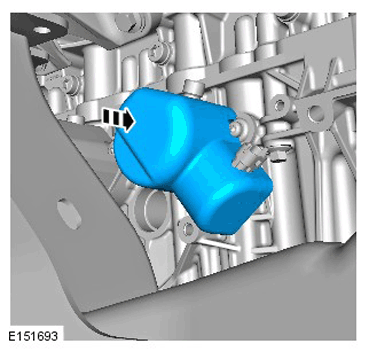

1. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

2. CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.
   NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 11 Nm

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Loosen the Torx screws half a turn each.

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

5. CAUTION:

   • Install new high-pressure fuel supply lines.
   • Lubricate only the union threads with clean engine oil.
   NOTE:

   • Remove and discard the blanking caps.
   • Engine shown removed for clarity.
   • Install the bolt and unions fully finger tight before final tightening.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Renew Part: Fuel rail supply pipe(s) Quantity: 1  .

6. CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.
   NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 11 Nm
7. Lower the vehicle.
8. NOTE:

   • Do not tighten at this stage.
   • Remove and discard the blanking caps.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

9. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

   Raise and support the vehicle.

10. NOTE: Engine shown removed for clarity.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Torque
      • Unions (1): 21 Nm
      • M6 (2): 11 Nm
      • M8 (3): 25 Nm
      • M5 nut (4): 6 Nm

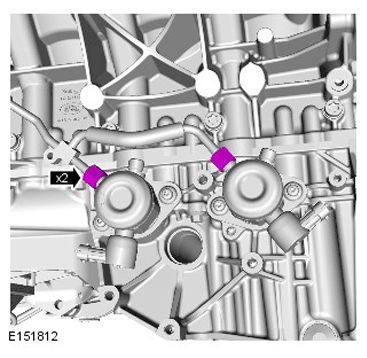

11. NOTE: Engine shown removed for clarity.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Torque  : 21 Nm
12. NOTE:

    • Install the bolt and unions finger tight before final tightening.
    • Remove and discard the blanking caps.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Torque
      • Unions: 21 Nm
      • M6: 11 Nm
13. NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Torque  : 21 Nm
14. NOTE: Engine shown removed for clarity.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque

    • M10: 29 Nm
    • M6: 11 Nm
15. NOTE: Engine shown removed for clarity.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Torque  : 25 Nm

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25 Nm

The following step(s) applies to:

All vehicles

1. Refer to: GENERATOR
2. Refer to: RIGHT ENGINE MOUNT - AWD (G1574170)
3. Refer to: FRONT RIGHT HALFSHAFT
4. Refer to: ENGINE UNDERSHIELD
5. Lower the vehicle.

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque
     • Unions: 21 Nm
     • Bolts: 8 Nm

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 21 Nm
9. WARNING: Be prepared to collect escaping fluid.
   CAUTION: Remove and discard the blanking cap.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

10. Refer to: RIGHT AIR CLEANER (G1549757)
11. WARNING: Be prepared to collect escaping fluids.
    CAUTION: Remove and discard the blanking caps.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

13. WARNING: Be prepared to collect escaping fluid.
    CAUTION: Remove and discard the blanking caps.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

14. Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
15. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
16. Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1779628)
