Component Location
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

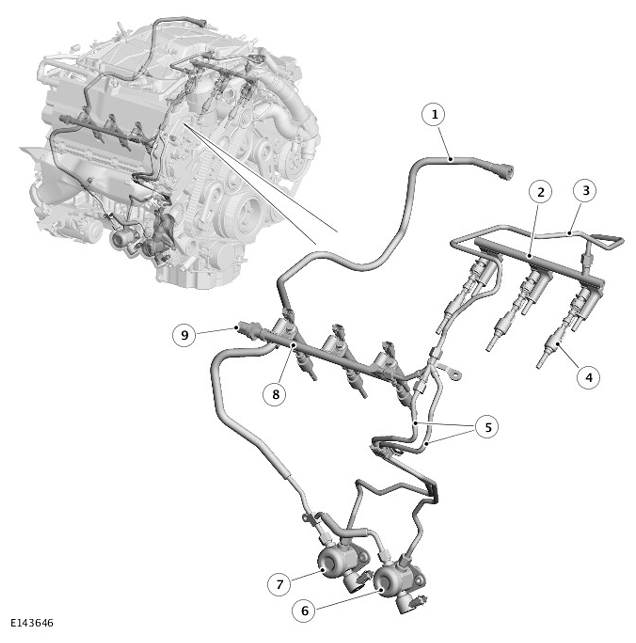

| ITEM |
DESCRIPTION |
| 1 |
Low Pressure (LP) fuel lines |
| 2 |
Fuel rail - Bank 2 |
| 3 |
Crossover tube |
| 4 |
Fuel injector (6 off) |
| 5 |
High Pressure (HP) fuel lines |
| 6 |
HP fuel pump - No. 1 (Front) |
| 7 |
HP fuel pump - No. 2 (Rear) |
| 8 |
Fuel rail - Bank 1 |
| 9 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
