Evaporative Emissions Canister - Secondary - NAS Only
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

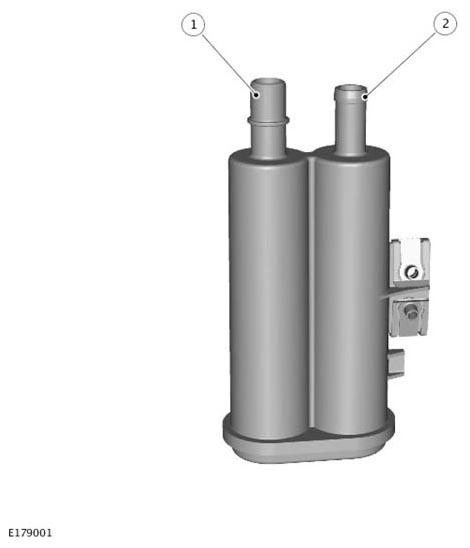

| ITEM | DESCRIPTION |
|---|---|
| 1 | Connector for vapor pipe to Evaporative emissions canister |
| 2 | Connector for vapor pipe to Diagnostic Module Tank Leakage (DMTL) pump |
The Evaporative emissions canister - secondary contains a bed of activated charcoal or carbon. The charcoal is produced using a special manufacturing technique to treat the charcoal with oxygen. The oxygen treatment opens up millions of pores between the carbon atoms, resulting in a highly porous charcoal with a very large effective surface area. This makes the charcoal capable of absorbing large quantities of fuel vapor. Once treated the charcoal is known as activated charcoal or carbon.
The Evaporative emissions canister - secondary is not repairable but is replaced if damaged.
The Evaporative emissions canister - secondary has a connector for DMTL pump and an another connector for Evaporative emissions canister.
