Component Location - NAS
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

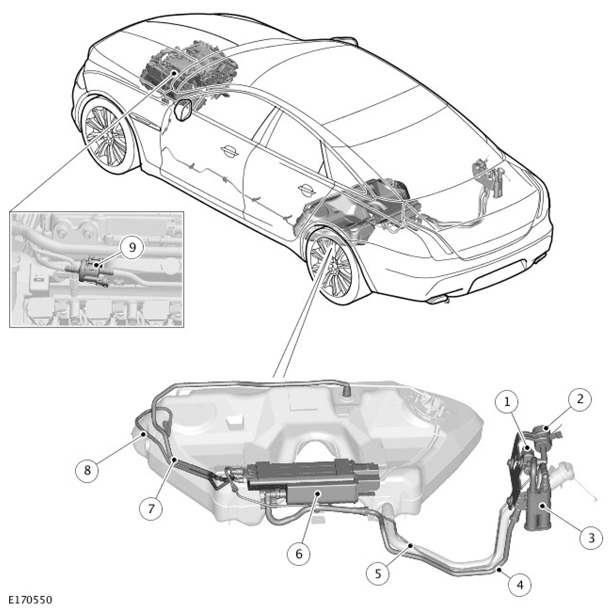

| ITEM | DESCRIPTION |
|---|---|
| 1 | Diagnostic Module Tank Leakage (DMTL) pump |
| 2 | Diagnostic Module Tank Leakage (DMTL) filter |
| 3 | Evaporative Emissions canister - secondary |
| 4 | Vapor pipe - Evaporative Emissions canister to Evaporative Emissions canister - secondary |
| 5 | Vapor pipe (filler head communication) - fuel tank to filler pipe |
| 6 | Evaporative Emissions canister |
| 7 | Vapor pipe - fuel tank to Evaporative Emissions canister |
| 8 | Vapor pipe - Evaporative Emissions canister to Purge Valve |
