Charge Air Coolant Pump
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

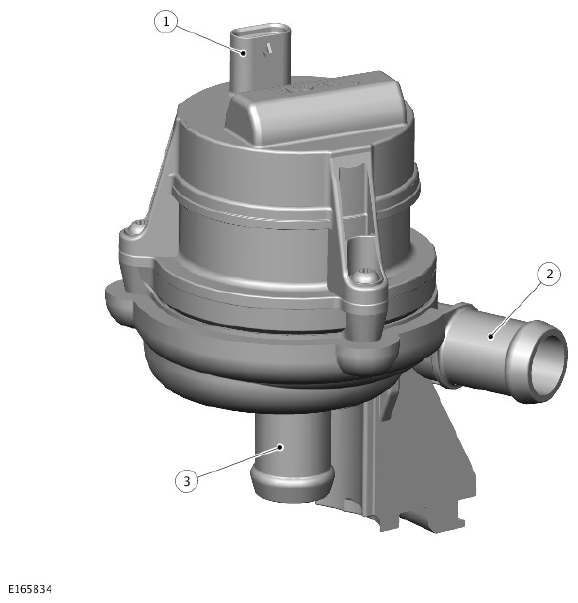

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical connector |
| 2 | Coolant outlet connection |
| 3 | Coolant inlet connection |
The charge air coolant pump is an electric pump attached to the right side of the charge air radiator. Hoses connect the inlet of the charge air coolant pump to the charge air radiator, and the outlet to the charge air coolers. An electrical connector provides the interface between the motor of the charge air coolant pump and the vehicle wiring.
