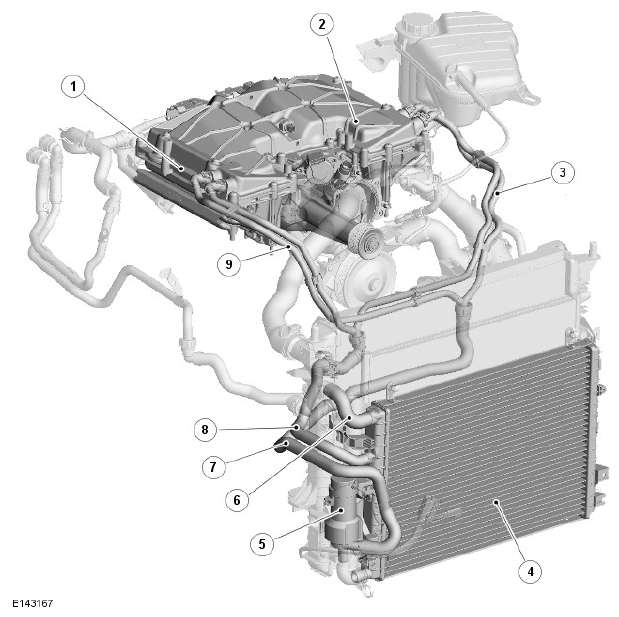

Component Location
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right charge air cooler assembly |
| 2 | Left charge air cooler assembly |
| 3 | Supply and return hoses to left supercharger charge air coolers |
| 4 | Charge air radiator |
| 5 | Charge air coolant pump |
| 6 | Engine cooling system connecting hose |
| 7 | Supply hose from charge air cooler |
| 8 | Return hose from supercharger charge air coolers |
| 9 | Supply and return hoses to right supercharger charge air coolers |
