Right Catalytic Converter: Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE: Removal steps in this procedure may contain installation details.

The following step(s) applies to:

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD

G11292558

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40 Nm

The following step(s) applies to:

2WD vehicles

G11292249

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

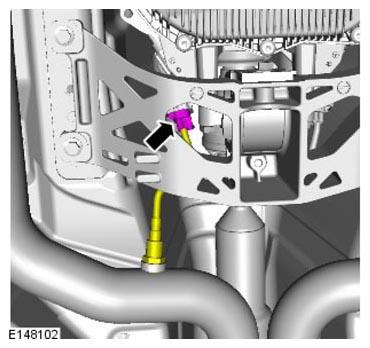

G11292560

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

4WD vehicles

G11292561

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

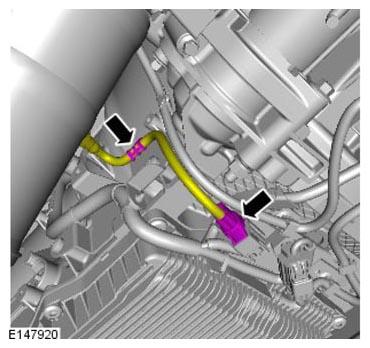

G11292562

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

G11292488

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

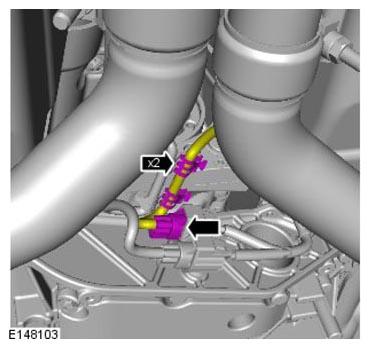

G11292564

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

NOTE: Install new clamp.

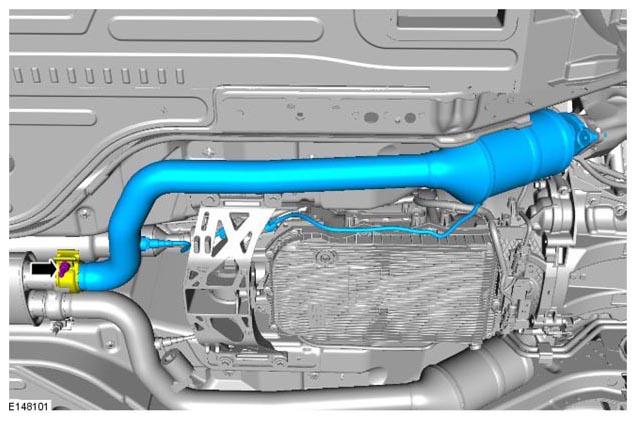

G11292565

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Rear exhaust silencer clamp Quantity: 1 .

Torque : 55 Nm

NOTE: Do not disassemble further if the component is removed for access only.

G11292566

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 310-121

Torque : 48 Nm
