Rear Muffler: Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • LH illustration shown, RH is similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.

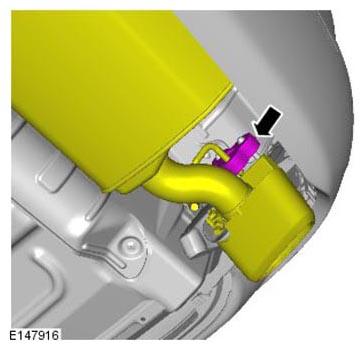

    G11292574Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

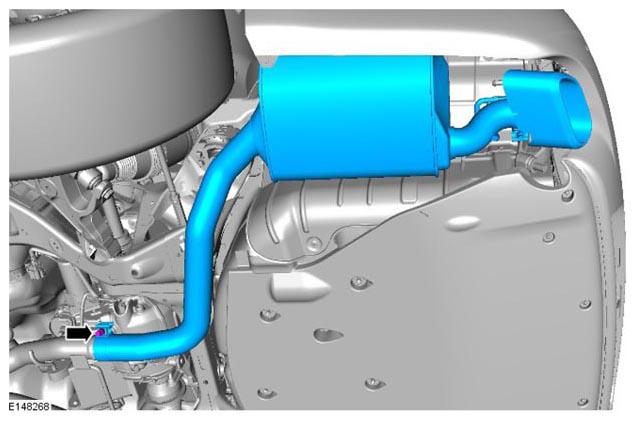

  3. G11292604Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 55 Nm
