Front Muffler : Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. NOTE: The procedure must be carried out on both sides.

    Refer to: REAR MUFFLER  .

  3. G11292568Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7 Nm

  4. G11292576Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque

    Bolts: 30 Nm

    Nuts: 10 Nm

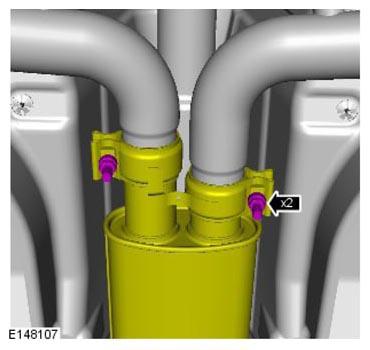

  5. G11292599Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 55 Nm

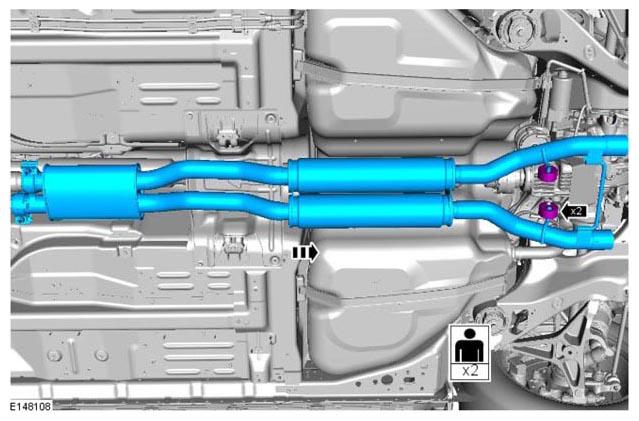

  6. G11292600Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION: Do not carry out this step if a new exhaust is to be installed.

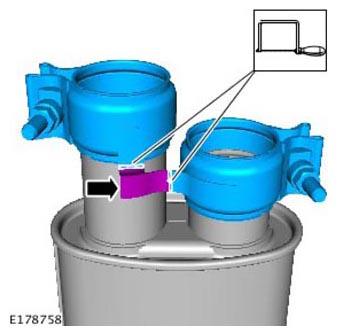

    G11292601Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the retaining clamps using a suitable tool.
