Front Muffler : Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Do not carry out this step if a new exhaust is to be installed.

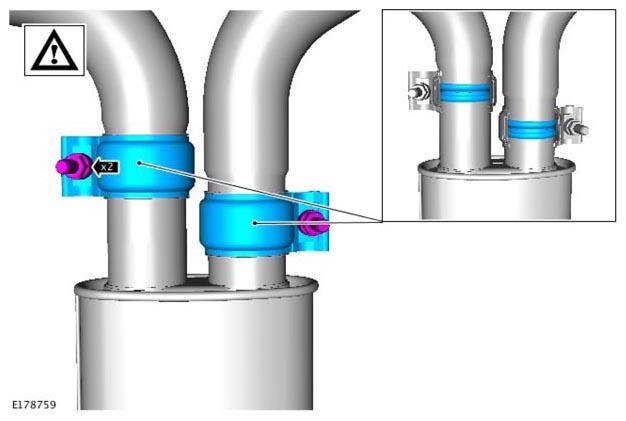

    G11292602Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install new retaining clamps as illustrated.

    Renew Part: Rear exhaust silencer clamp  Quantity: 2  .

  2. To install reverse the removal procedure.
