Exhaust System - RWD: Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD

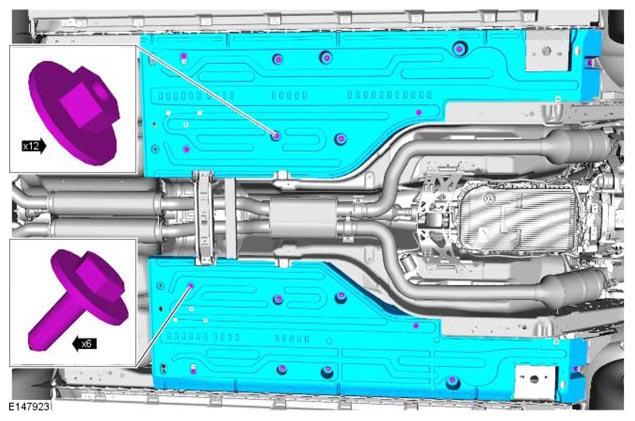

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

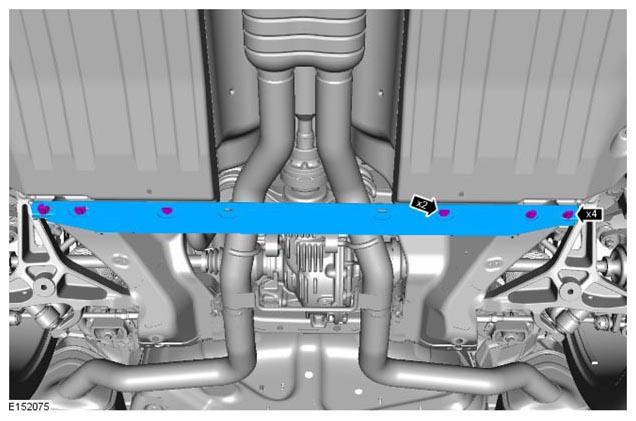

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40 Nm

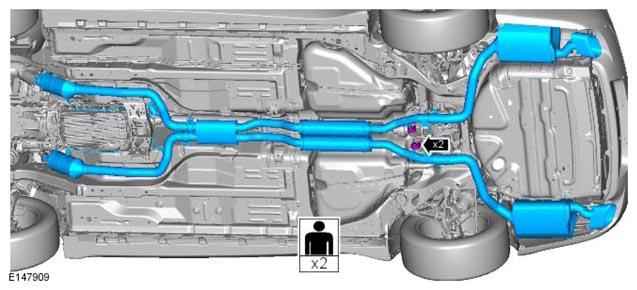

CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
NOTE:
- LH illustration shown, RH is similar.
- The step must be carried out on both sides.

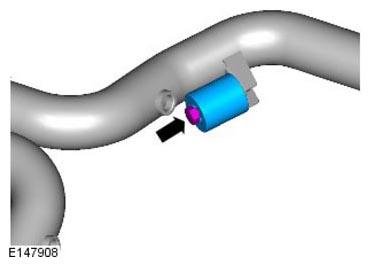

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 30 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

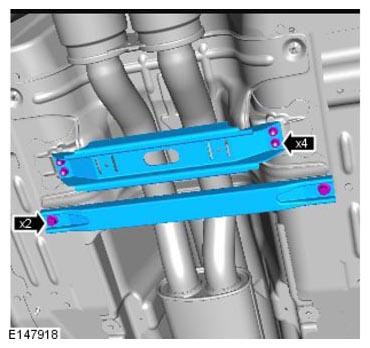

Torque

Bolts: 30 Nm

Nuts: 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

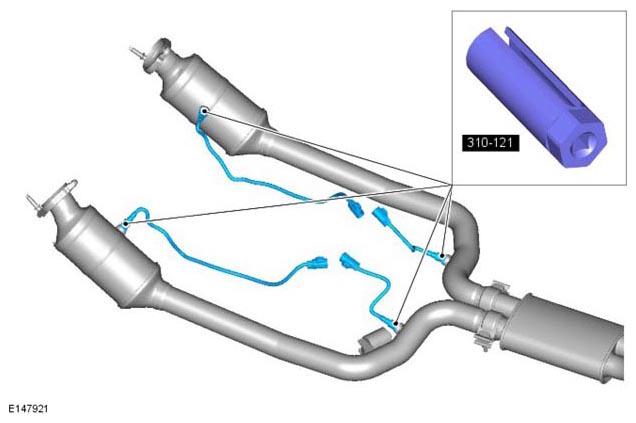

Special Tool(s): 310-121

Torque : 48 Nm

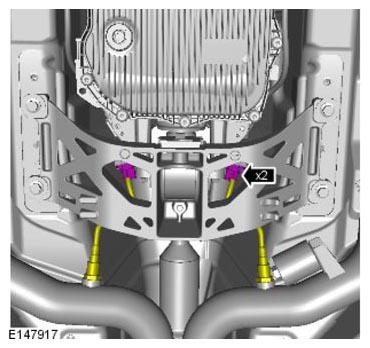

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 18 Nm
