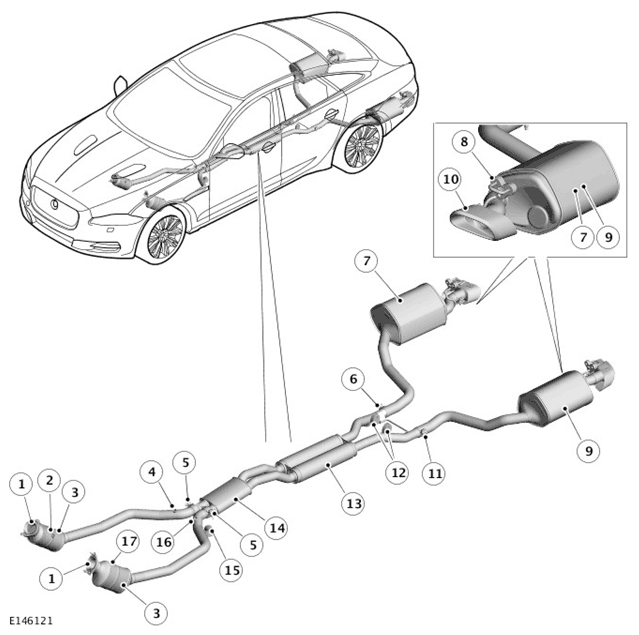

COMPONENT LOCATION - V6 3.0L S/C PETROL
| Item | Description |
|---|---|
| NOTE: | All Wheel Drive (AWD) shown, Rear Wheel Drive (RWD) similar |
| 1 | Manifold flange (2 off) |
| 2 | Mid-catalyst Heated Oxygen Sensor (HO2S) - Bank 1 |
| 3 | Catalytic converter (2 off) |
| 4 | Post catalyst HO2S - Bank 1 |
| 5 | Graphite Clamp (2 off) |
| 6 | Clamp |
| 7 | Right rear silencer |
| 8 | Mounting rubber (2 off) |
| 9 | Left rear silencer |
| 10 | Exhaust trim (2 off) |
| 11 | Clamp |
| 12 | Mounting rubber (2 off) |
| 13 | Center resonator silencer |
| 14 | Front silencer |
| 15 | Mass damper |
| 16 | Post catalyst HO2S - Bank 2 |
| 17 | Mid-catalyst Heated Oxygen Sensor (HO2S) - Bank 2 |
