Timing Drive Components (G1557030): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Check all timing components for wear and install new components if required.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: LEFT VALVE COVER (G1557032)
Refer to: RIGHT VALVE COVER (G1557033)
Refer to: LOWER TIMING COVER (G1779456)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Only rotate the crankshaft clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: If the variable valve timing (VVT) units are knocked or dropped then the VVT must be replaced.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

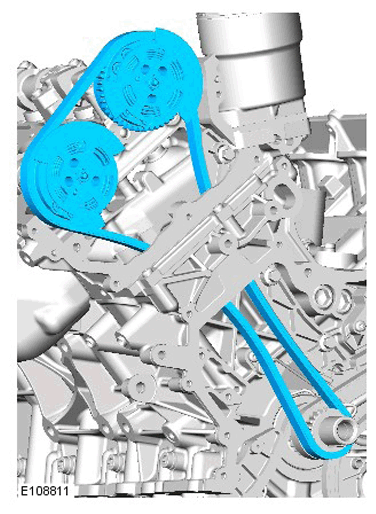

Remove the timing chain with the VVT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: If the VVT is knocked or dropped then the VVT must be replaced.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

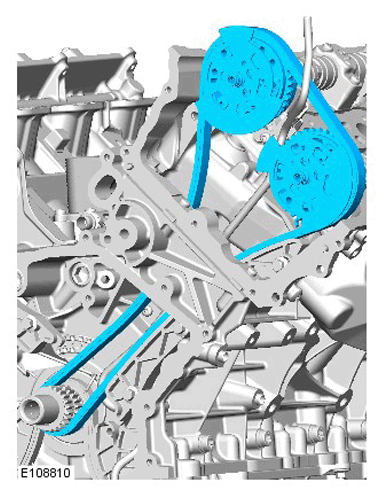

Remove the timing chain with the VVT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the friction washer.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
