Timing Chain TENSIONER - Engine Set (G1841714): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

CAUTION:

Check all timing components for wear and install new components if required.
Removal steps in this procedure contains installation details.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Refer to: FUEL SYSTEM PRESSURE RELEASE - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935)
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR (G1549760)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: CRANKSHAFT PULLEY (G1851000)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the FEAD belt.
WARNING: The wheel and tire assembly will be heavy.
NOTE:
- Note the position of the component before removal.
- Left hand illustration shown, right hand similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right-hand front wheel and tire.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack, support the engine.
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the component.
CAUTION:
- Remove and discard the high-pressure fuel supply lines.
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Install new high-pressure fuel supply lines.
- Do not fully install the component at this stage.
- The openings must remain sealed at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Engine shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the component.

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

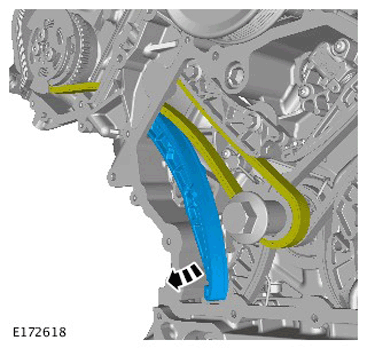

CAUTION: Take extra care not to damage the component.

NOTE: Make sure to use the aluminum lug provided on the timing cover to lever against.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Using a suitable tool, lock the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

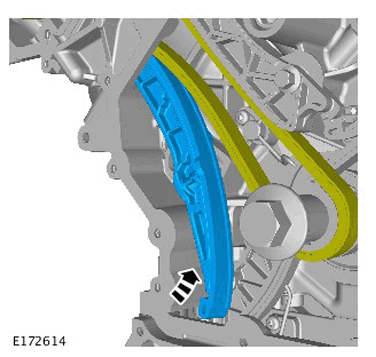

CAUTION: Take extra care not to damage the component.

NOTE: Make sure to use the aluminum lug provided on the timing cover to lever against.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE:
- Only rotate the engine in the normal direction of rotation.
- Rotate the engine to the positions indicated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

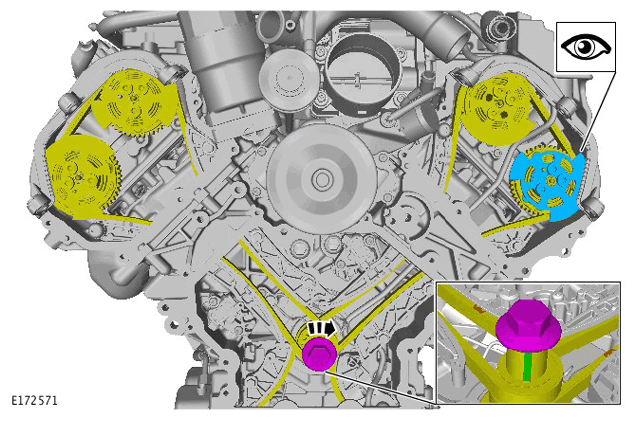

The engine is now in the timed position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft position sensor.
CAUTION: Only tighten the bolt finger-tight.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the special tool is correctly located.

Special Tool(s): 303-1447
Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the crankshaft position sensor.

Torque : 10 Nm
NOTE:
- Only rotate the engine in the normal direction of rotation.
- Rotate the engine to the positions indicated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Rotate the crankshaft 90 degrees.
CAUTION: Do not tension the tie strap at this stage.

NOTE: Right side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

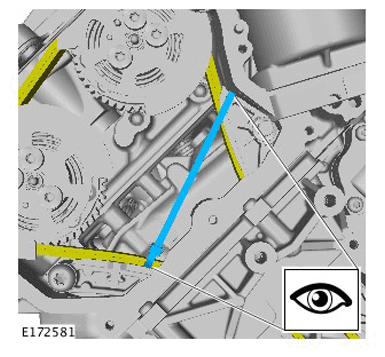

Install the tie strap loose at this stage in the positions indicated.
CAUTION:
- Note the orientation of the tie strap in the illustration before applying tension.
- Make sure the tension is maintained on the timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

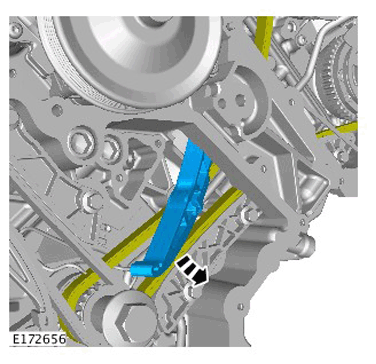

Remove the timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: If a new timing component is to be installed, then components labelled 2 in the illustration, must be installed (as this is the latest version of the timing components). Do not attempt to install the components labelled 1, as damage to the engine may occur.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The differences and orientation of the timing components can be seen. Original components (1) new components (2). The original timing chain tensioner (1) is angled, the new timing chain tensioner (2) is not angled.
CAUTION: Make sure that a new component is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain tensioner. Do not release the pin at this stage.

Torque : 12 Nm
CAUTION: Do not tension the tie strap at this stage.

NOTE: Left side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

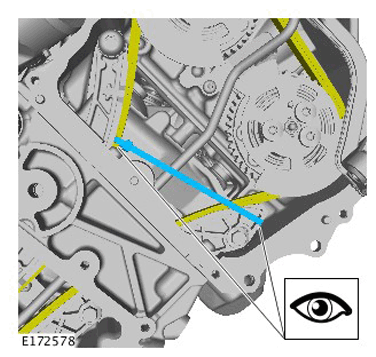

Install the tie strap loose at this stage in the positions indicated.

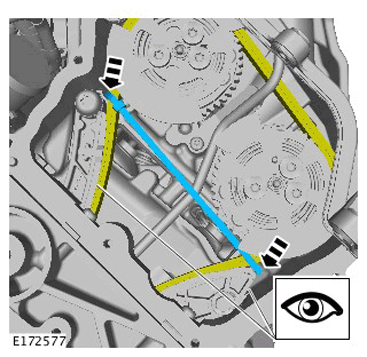

CAUTION:
- Note the orientation of the tie strap in the illustration before applying tension.
- Make sure the tension is maintained on the timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

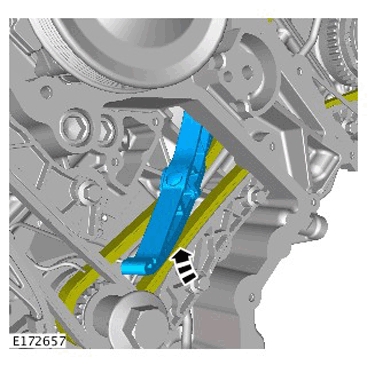

Remove the timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that a new component is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain tensioner. Do not release the pin at this stage.

Torque : 12 Nm
