Timing Chain TENSIONER - Engine Set (G1841714): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Release the retaining pin.
NOTE: Right side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Release the retaining pin.
NOTE:

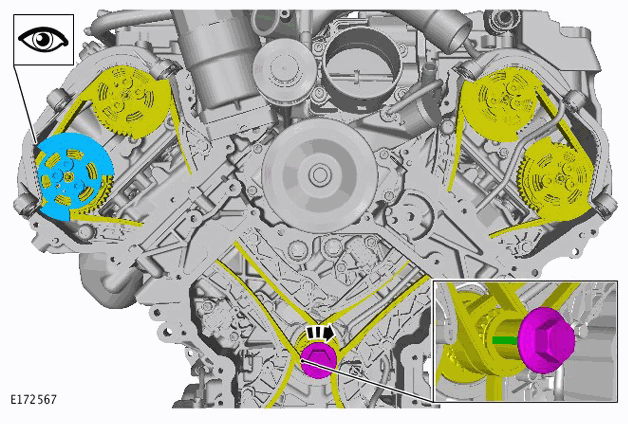

- Only rotate the engine in the normal direction of rotation.
- Rotate the engine to the positions indicated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Rotate the crankshaft clockwise two full turns to settle the components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The piston should apply tension to the timing chain guide.
CAUTION: Make sure the tension is maintained.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using considerable force, move the timing chain guide away from the tensioner to allow the first stage ratchet mechanism to be applied.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The piston should eject slightly, and an audible click should be heard.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If the piston can be pushed back, the tensioner is not correct. Repeat steps 7- 10.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If the piston will not retract, and tension is on the timing chain. The tensioner is correct.
Repeat steps 8- 12 for the other side.
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) to the areas shown.
CAUTION: Make sure that a new component is installed.

NOTE: Tighten the retaining bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the lower timing cover bolts within 7 minutes.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the lower timing cover bolts within 7 minutes.

Torque : 12 Nm
NOTE: Lubricate the O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
CAUTION: Take extra care not to damage the seal when installing the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

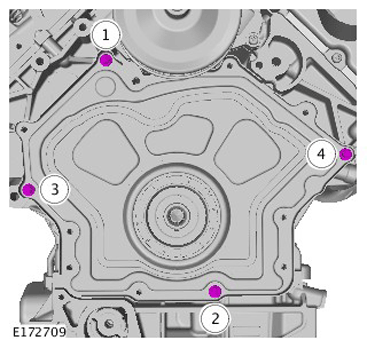

NOTE: Tighten the retaining bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
CAUTION: Using a suitable tool, lock the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply RTV sealant (Loctite 5901G) to the areas shown, install the component, and tighten the bolts within 7 minutes.
CAUTION: Take extra care not to damage the seal when installing the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

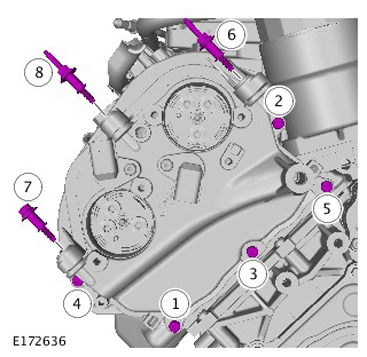

NOTE: Tighten the retaining bolts in the indicated sequence.

Fig 1: Timing Cover Retaining Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

13

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Lubricate only the union threads with clean engine oil.
- Only tighten the bolts finger-tight at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Unions (1): 21 Nm

M6 (2): 11 Nm

M8 (3): 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: ENGINE UNDERSHIELD
WARNING: The wheel and tire assembly will be heavy.

CAUTION: Apply a small amount of grease to the hub and wheel mating surfaces before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.
NOTE:
- Make sure that the component is installed to the noted removal position.
- Left hand illustration shown, right hand similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the RH front wheel and tire.

Torque : 140 Nm
Install the FEAD belt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
Refer to: CRANKSHAFT PULLEY (G1851000)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Unions: 21 Nm

M5 nut: 6 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Only tighten the bolts finger-tight at this stage.
- This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: This fuel pipe can be re-used, inspect for signs of damage. Renew if necessary.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Unions: 21 Nm

Bolts: 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

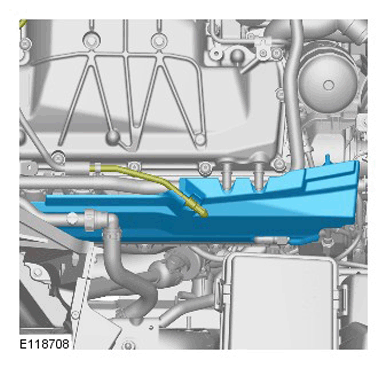

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

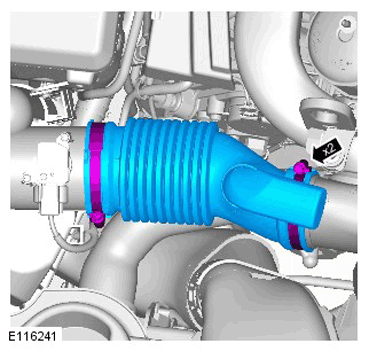

Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR (G1549760)
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935)
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
