Right Engine Mount - RWD (G1557019): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

The following step(s) applies to:

All vehicles

Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: REAR UNDERBODY AIR DEFLECTOR
The following step(s) applies to:

Right-hand drive vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Note the fitted position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

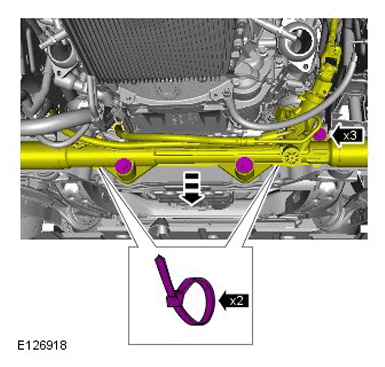

- Support and release the power steering rack.
The following step(s) applies to:

All vehicles
CAUTION: Support the engine on a jack. The angle may need to be adjusted during this procedure.

Support the engine with the lifting equipment.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the nut.
