Right Engine Mount - RWD (G1557019): Installation

The following step(s) applies to:

All vehicles

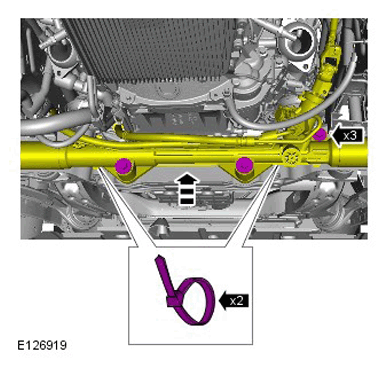

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new nut and tighten to 48 Nm.

     Renew Part: Engine mount to engine mount bracket nut Quantity: 1  .

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 48 Nm

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 63 Nm
   • Install a new locknut.

     Renew Part: Engine mount to engine mount bracket nut Quantity: 1  .

   The following step(s) applies to:

   Right-hand drive vehicles

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 100 Nm

5. NOTE: Note the fitted position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 35 Nm

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to:

   All vehicles

7. Refer to: REAR UNDERBODY AIR DEFLECTOR
8. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

   Lower the vehicle on the lift.

9. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1269119)
