Right Cylinder Head (G1557017): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: SECONDARY BULKHEAD RIGHT PANEL
Refer to: RIGHT EXHAUST MANIFOLD (G1557022)
Refer to: RIGHT CAMSHAFT (G1557012)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Clamp the hose to minimize coolant loss.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Discard the seals.
- Be prepared to collect escaping coolant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Remove and discard the O-ring seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
NOTE: Left-hand shown, right-hand similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

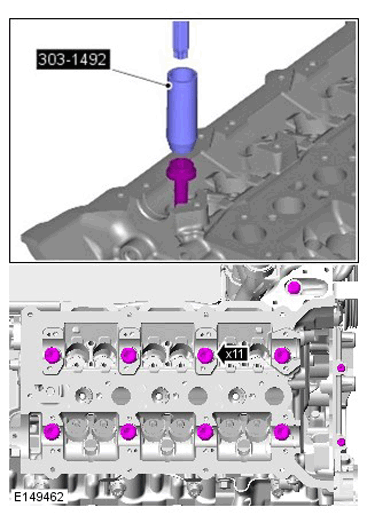

Use the special tool to remove the cylinder head bolts.

Install the Special Tool(s): JLR-303-1653
CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1492
Remove the special tools.
Remove the Special Tool(s): JLR-303-1653 , 303-1492
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
