Right Cylinder Head (G1557017): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The maximum acceptable flatness of the cylinder head is 0.2 mm.

Check cylinder head face for distortion, across the center and from corner to corner.

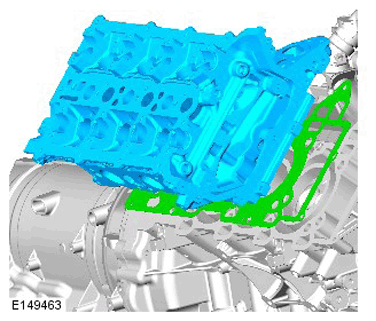

WARNING: Make sure care is taken when handling the cylinder head gasket.
CAUTION:
- The head gasket must be installed over the cylinder block dowels.
- Make sure that the mating faces are clean and free of foreign material.
NOTE: Install a new cylinder head gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Cylinder head gasket Quantity: 1 .
CAUTION: Make sure that new cylinder head bolts are installed.

NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Right Side Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Special Tool(s): JLR-303-1653 , 303-1492

Renew Part: Cylinder head bolts Quantity: 1 .

Torque : 20 Nm
NOTE: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 35 Nm
NOTE: Slacken the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 35 Nm
NOTE: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts 1 to 8, a further 90 degrees.
NOTE: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts 1 to 8, a further 120 degrees.
Remove the special tools.
Remove the Special Tool(s): JLR-303-1653 , 303-1492
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
NOTE: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
CAUTION:
- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Left-hand shown, right-hand similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate the valve tappets with clean engine oil.
NOTE: Install a new gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil filter housing gasket Quantity: 1 .

Torque : 12 Nm
CAUTION: A new O-ring seal is to be installed.

NOTE: Install a new engine oil filter.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
CAUTION: Install the new seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Engine block heater manifold seal(s) Quantity: 1 .

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20 Nm
Refer to: RIGHT CAMSHAFT (G1557012)
Refer to: RIGHT EXHAUST MANIFOLD (G1557022)
Refer to: SECONDARY BULKHEAD RIGHT PANEL
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
