Rear Dynamic Balancer (G1779109): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: OIL PUMP (G1557028)

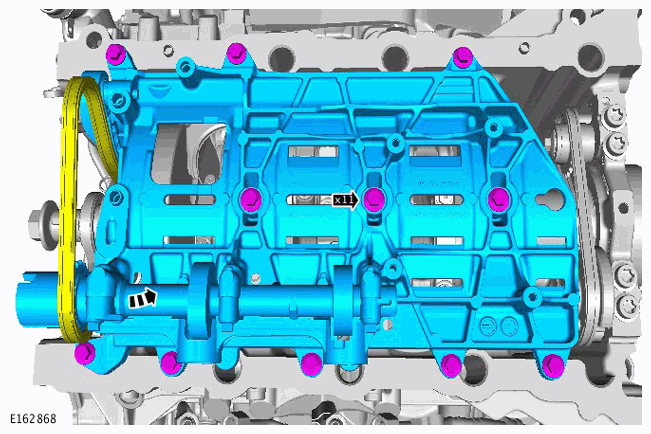

  2. G11286992Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. CAUTION: Make sure the timing marks are aligned.
    G11286993Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. G11286994Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

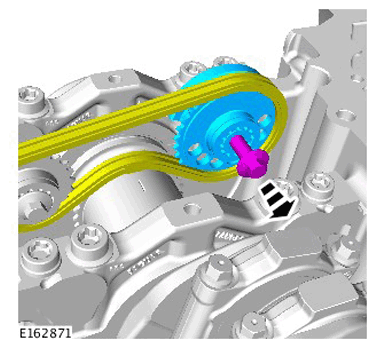

  5. G11286995Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
