Oil Pump (G1557028): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1269119)

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: OIL PAN EXTENSION - RWD (G1557027)

    Refer to: OIL PAN - AWD (G1569239)  .

  4. G11285218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

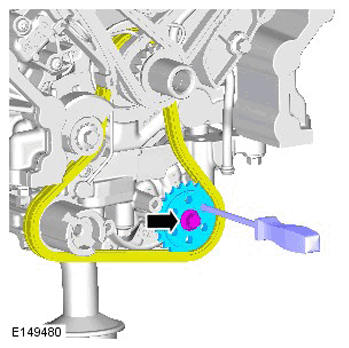

  5. G11286865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE: Remove and discard the O-ring seal.
    G11285220Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION: Remove and discard the O-ring seals.
    G11285221Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
