Oil Pump (G1557028): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Lubricate and install the new O-ring seals.
  Renew Part: Oil pump outlet tube O-ring seal(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

M6: 12 Nm

M8: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Lubricate and install a new O-ring seal.
  Renew Part: Oil pick up pipe O-ring seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

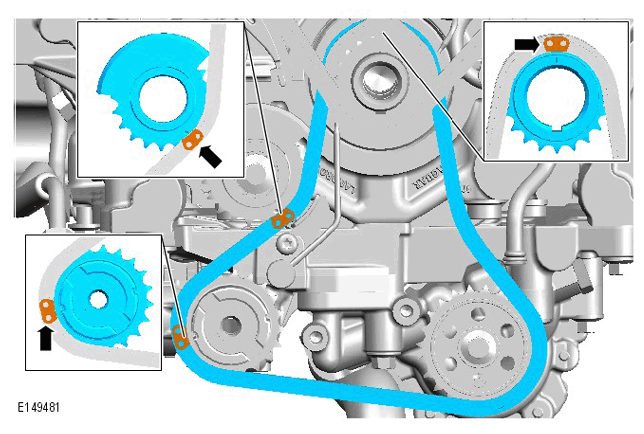

- Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance shaft and crankshaft sprocket markings.
CAUTION: Make sure that the tensioner spring is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
Refer to: OIL PAN EXTENSION - RWD (G1557027)
Refer to: OIL PAN - AWD (G1569239)
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1269119)
