Oil Pan Extension - RWD (G1557027): Installation

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8 Nm
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Use only a plastic scraper when removing the sealing material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Oil Pan Extension Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Use only a plastic scraper when removing the sealing material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Oil Pan Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

NOTE: Install a new lower timing cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts, but do not tighten fully at this stage.

Special Tool(s): 303-1433

Renew Part: Lower timing cover Quantity: 1 .
NOTE: Tighten the bolts in the indicated sequence.

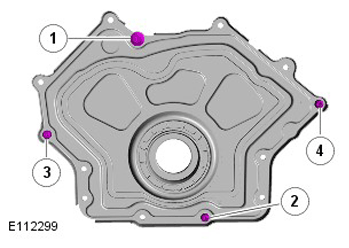

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque
  M8: 20 Nm

  M6: 12 Nm
Remove the special tools.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

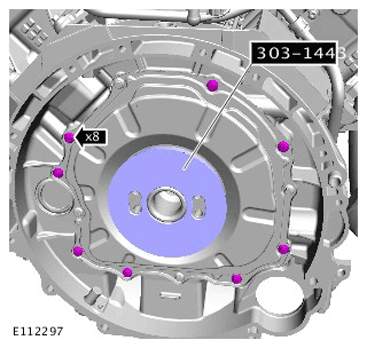

- Special Tool(s): 303-1442
- Special Tool(s): 303-1443
Remove the special tool.
NOTE: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen the Torx screws half a turn each.
NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen the Torx screws half a turn each.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

NOTE: Fuel rail high-pressure fuel pump cover shown removed for clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 11 Nm
CAUTION:
- Install new high-pressure fuel supply lines.
- Lubricate only the union threads with clean engine oil.
NOTE:
- Remove and discard the blanking caps.
- Install the bolt and unions fully finger tight before final tightening.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
NOTE:
- Do not tighten at this stage.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque
  Unions (1): 21 Nm

  M6 (2): 11 Nm

  M8 (3): 25 Nm

  M5 nut (4): 6 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21 Nm

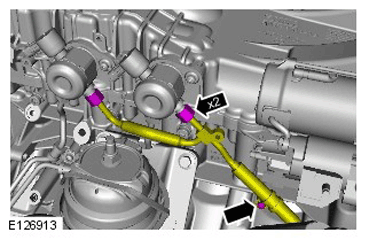

NOTE:
- Install the bolt and unions finger tight before final tightening.
- Remove and discard the blanking caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque
  Unions: 21 Nm

  M6: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

M10: 29 Nm

M6: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Unions: 21 Nm

M6: 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
NOTE: The high-pressure fuel pumps are removed from the illustration for clarity.

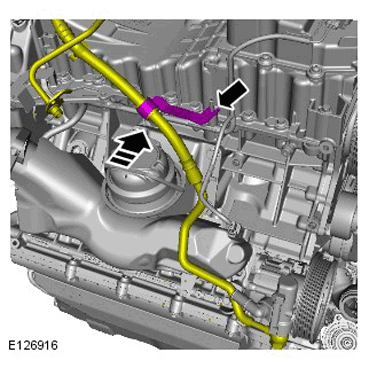

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

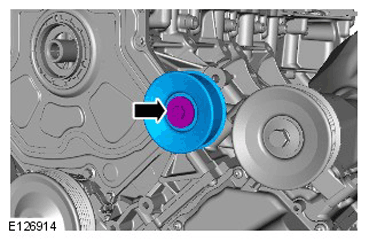

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40 Nm

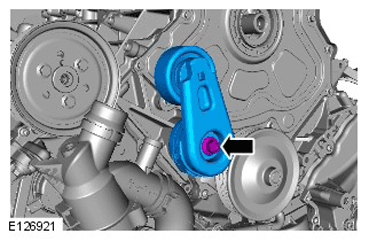

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm

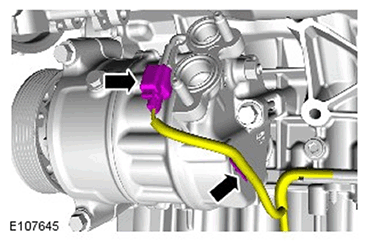

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm

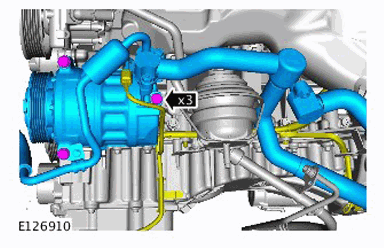

CAUTION: Install all the bolts finger tight before final tightening.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Install all the bolts finger tight before final tightening.

NOTE: Tighten the bolts in the indicated sequence.

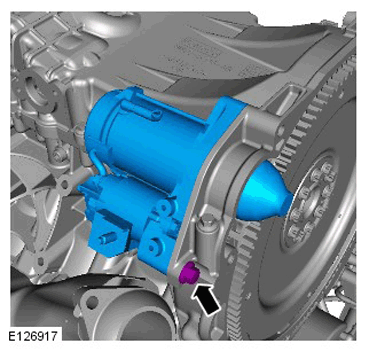

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 48 Nm
CAUTION:
- Install all the bolts finger tight before final tightening.
- The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
- Install the bolts in the noted position.
NOTE:
- Make sure that the crankshaft is not rotated.
- Make sure the crankshaft and flexplate mating faces are clean before installation.
- Tighten the retaining bolts working diagonally.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 45 Nm

Stage 2: 90°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: Engine - RWD
Refer to: Engine - AWD
Refer to: CRANKSHAFT PULLEY (G1851000)
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1779628)
