Lower Timing Cover (G1779456): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1779628)
Remove the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY (G1851000)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

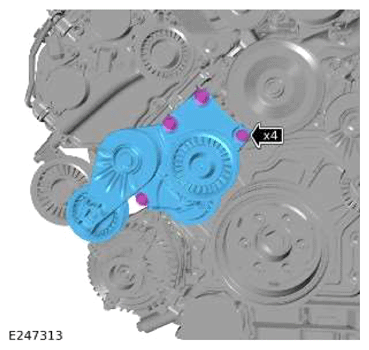

- Remove the 4 bolts.
- Remove the accessory drive belt pulley and bracket assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the accessory drive belt tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the vacuum pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 12 bolts.
Remove and discard the lower timing cover.
