Left Engine Mount - RWD (G1557018): Installation

The following step(s) applies to:

All vehicles

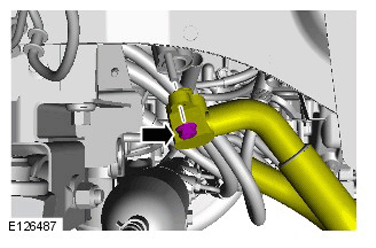

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new nut and tighten to 48 Nm.

     Renew Part: Engine mount to engine mount bracket nut Quantity: 1  .

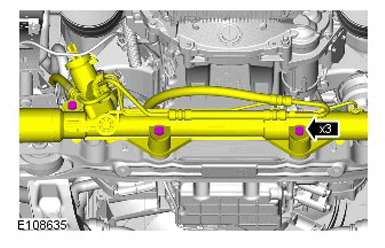

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 48 Nm

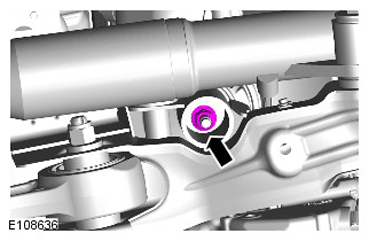

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 63 Nm
   • Install a new locknut.

     Renew Part: Engine mount to engine mount bracket nut Quantity: 1  .

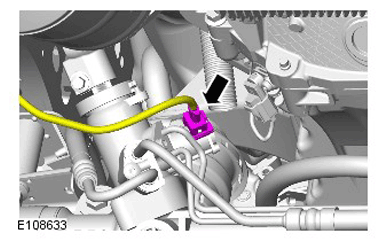

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 18 Nm

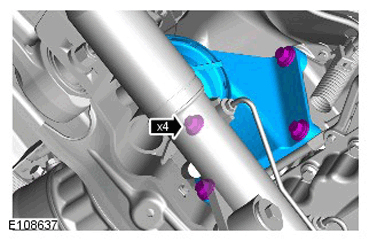

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Renew Part: Air conditioning pipe to compressor O-ring seal(s) Quantity: 1  .

   Torque  : 18 Nm

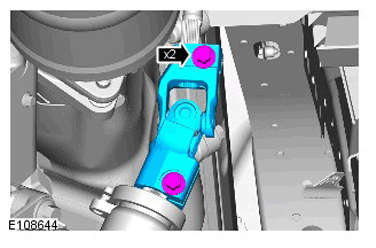

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 10 Nm

   The following step(s) applies to:

   Left-hand drive vehicles

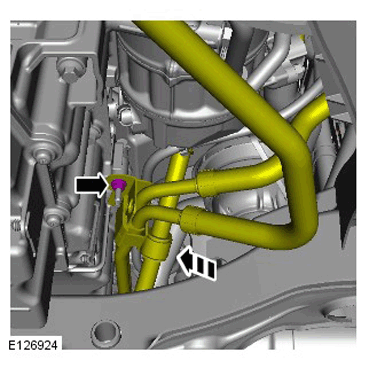

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 100 Nm

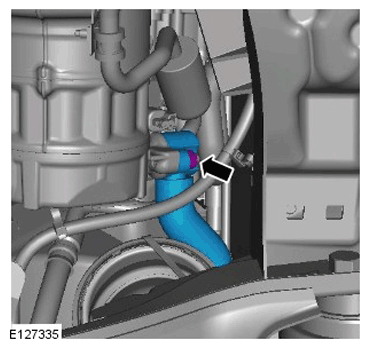

8. NOTE: Make sure that this component is installed to the noted removal position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Torque  : 35 Nm
   • Right-hand side shown, left-hand side similar.

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to:

   All vehicles

10. Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
11. Refer to: REAR UNDERBODY AIR DEFLECTOR
12. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Lower the vehicle on the lift.

13. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1269119)
