Cylinder Block Oil Gallery Plug (G1557034): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: RIGHT EXHAUST MANIFOLD (G1557022)

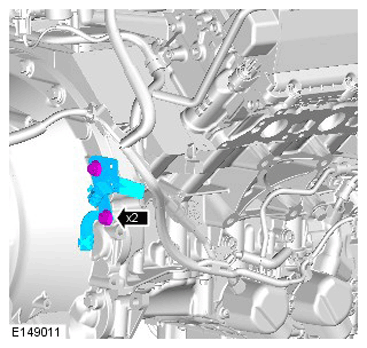

  4. G11286965Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 48 Nm

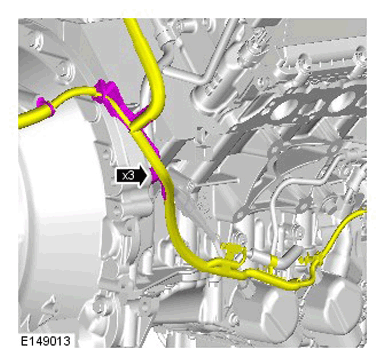

  5. G11286966Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

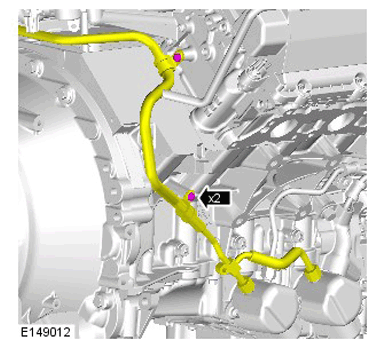

  6. G11286967Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 12 Nm

  7. CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

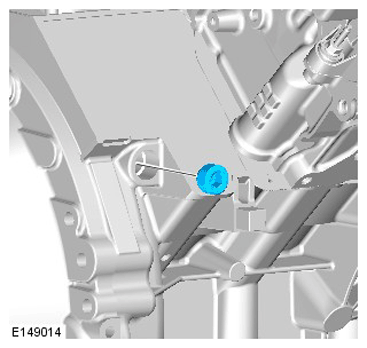

    G11286968Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque

    Stage 1: 20 Nm

    Stage 2: 180°
