Fuel Pump Camshaft Timing Check (G1557009): Check

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1269119)

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: REAR UNDERBODY AIR DEFLECTOR
  4. CAUTION: Be prepared to collect escaping oil.
    NOTE:
    • Discard the sealing washer.
    • Collect the engine oil in a clean container.
    G11284854Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. G11285263Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Make sure that the crankshaft is fully locked.
    G11285264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-303-1303

  7. G11284857Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable marker, mark the position of the crankshaft pulley as illustrated.

  8. CAUTION: Discard the seal.
    G11286399Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. G11285264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-303-1303

  10. G11286401Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    If required, carefully adjust the crankshaft position to allow correct installation of the special tool.

    Special Tool(s): JLR-303-1621

  11. CAUTION: Do not use excessive force when adjusting the crankshaft position.
    NOTE: If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.
    G11285264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • If required, carefully adjust the crankshaft position to allow correct installation of the special tool.
    • Special Tool(s): JLR-303-1303
    • If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.
  12. G11284863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): JLR-303-1621
  13. CAUTION: Install a new seal.
    G11286399Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Renew Part: Brake vacuum pump seal Quantity: 1  .

      Torque  : 12 Nm

  14. G11285264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): JLR-303-1303
  15. G11285263Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Torque  : 10 Nm
  16. NOTE: Install a new sealing washer.
    G11284854Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Oil pan drain plug Quantity: 1  .

    Torque  : 24 Nm

  17. Connect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1269119)

  18. CAUTION: Make sure that the vehicle is left for 5 minutes from filling with oil and that the engine oil level is reading at least minimum (by following Steps 9-16), before starting the engine.
    • Fill the engine with oil.
    • Clean any residual engine oil from the oil filler cap area.
  19. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.

    Follow the Steps 9-16 before starting the engine.

    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  21. CAUTION:
    • Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
    • Make sure that the hood is open.
    • Turn the ignition on.

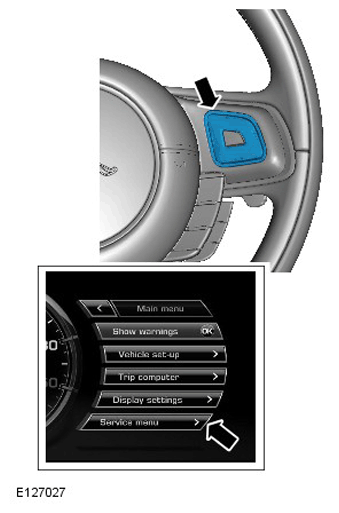

  22. G11284820Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press the right-hand directional button to access the instrument cluster menu.

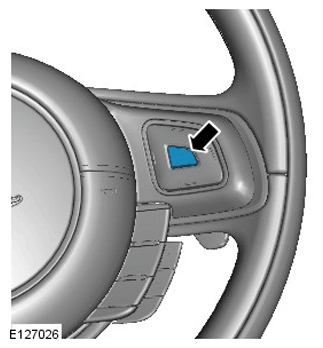

  23. G11284821Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press the right-hand OK button.

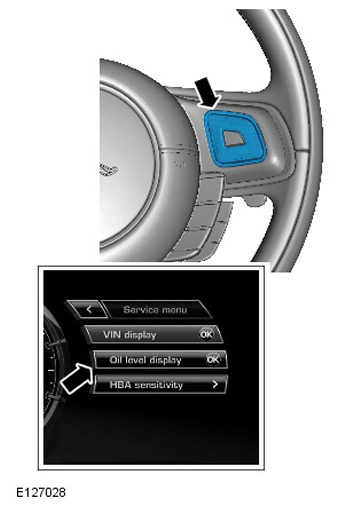

  24. G11284822Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the right-hand directional button to access the Oil Level Display.

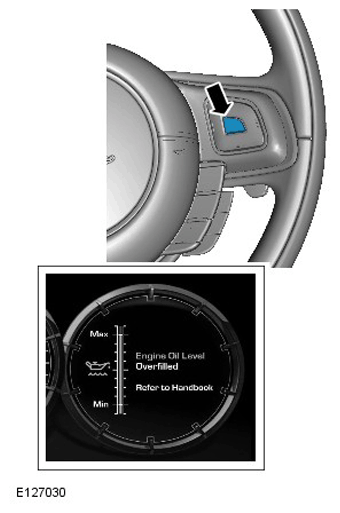

  25. G11284823Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the right-hand OK button and follow the instructions.

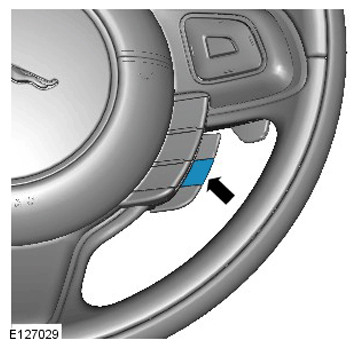

  26. G11284824Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the cruise control cancel button twice within 2 seconds.

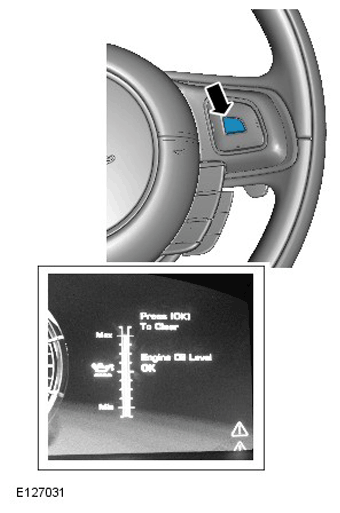

  27. G11284825Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • The message center display will revert to the normal display in the trip computer.
    • Press the right-hand OK button and follow the instructions.
    • Check that the oil level display shows an oil level reading.
    • Only after having started and run the engine for 10 minutes (as indicated in Step 8), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  28. NOTE: If instructed to follow Steps 9-15 in a previous step, return to Step  8 and continue the procedure.

    Turn the ignition off.

  29. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
  30. NOTE: The following steps are to update the average oil level value.
    G11284824Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Turn the ignition on.
    • Press and hold the cruise control cancel button for more than 2 seconds.
    • The message center display will revert to the normal display in the trip computer.
  32. Turn the ignition off.
  33. Turn the ignition on.
  34. G11284820Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press the right-hand directional button to access the instrument cluster menu.
  35. G11284821Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press the right-hand OK button.
  36. G11284822Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the right-hand directional button to access the Oil Level Display.

  37. G11284825Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the right-hand OK button and follow the instructions.

  38. Refer to: REAR UNDERBODY AIR DEFLECTOR
