Fuel Pump Camshaft Timing Adjustment (G1717327): Check

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: FUEL PUMP CAMSHAFT TIMING CHECK (G1557009)
  4. Refer to: LOWER TIMING COVER (G1779456)

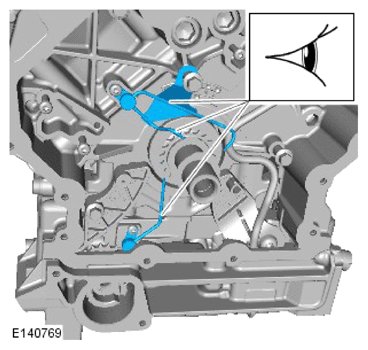

  5. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Inspect the 3 timing chain oil nozzles for signs of damage, install as necessary.
    G14015747Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION:
    • Using a suitable tie strap, position the tensioner to one side.
    • Take extra care when removing the component. Make sure the washers fitted both sides of the balance weight do not fall into the engine oil pan.

    Make sure the colored chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance shaft and crankshaft sprocket markings.

    Special Tool(s): JLR-303-1621

    Torque

    Stage 1: 25 Nm

    Stage 2: 90°

  7. Refer to: LOWER TIMING COVER (G1779456)
  8. G11285264Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): JLR-303-1303

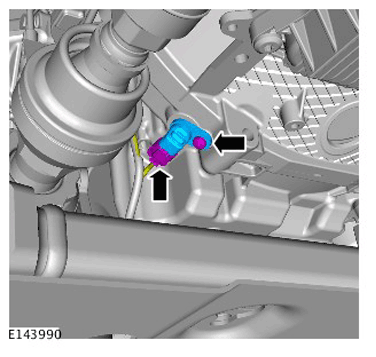

  9. G11286424Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

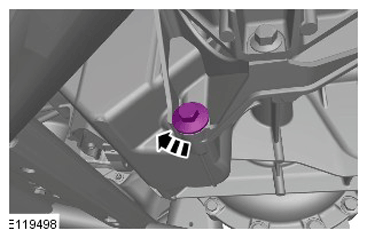

  10. NOTE: Install a new sealing washer.
    G11286425Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Oil pan drain plug Quantity: 1  .

    Torque  : 24 Nm

  11. Connect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

    • Fill the engine with oil - for filling values on vehicles with supercharger:

      Refer to: Capacities

    • Clean any residual engine oil from the oil filler cap area.
  13. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
    • Start the engine and allow to run for 10 minutes, stop the engine.
    • Check for leaks.
  14. CAUTION:
    • Make sure that the selector lever is in the park (P) position.
    • Make sure that the hood is open.

    Set the ignition to the ON position.

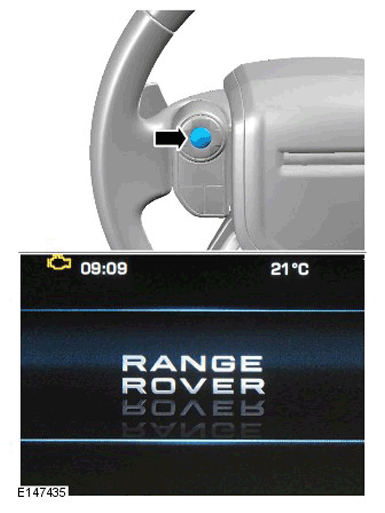

  15. G11286426Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.

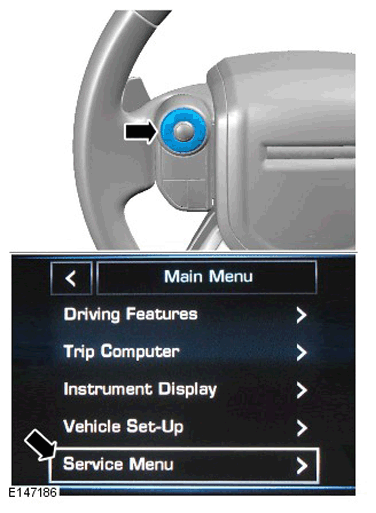

  16. G11286427Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand directional button and select Service Menu.

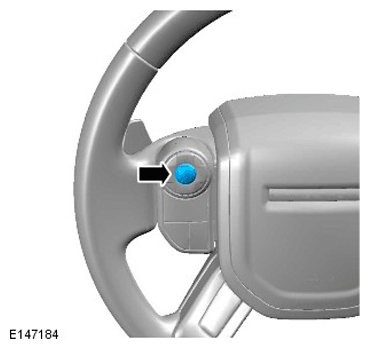

  17. G11286428Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand OK button.

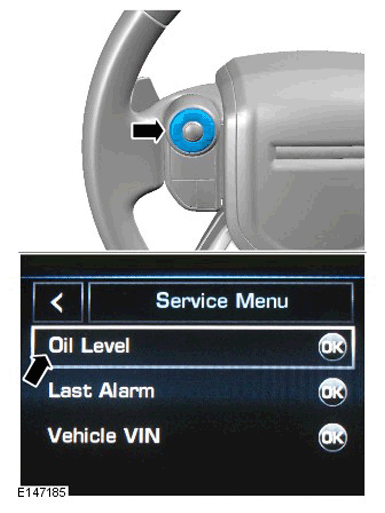

  18. G11286429Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand directional button and select the Oil Level display.

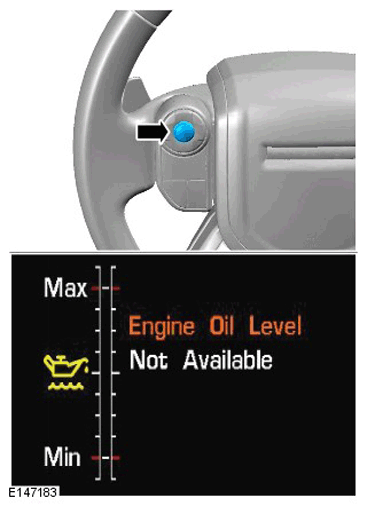

  19. G11286430Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand OK button to access the Oil Level display.

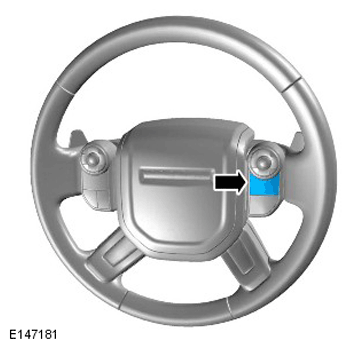

  20. CAUTION: Make sure that the hood is open.
    G11286431Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the speed control cancel button twice within 2 seconds while being on the oil level display.

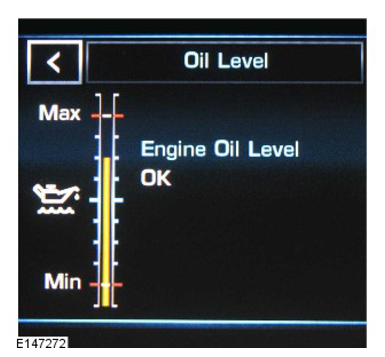

  21. G11299372Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • The message center displays the actual oil level in service mode.
    • Only after having started and run the engine for 15 minutes (as indicated in Step 13), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
  22. Set the ignition to the OFF position.
  23. Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
    NOTE: The following steps are to update the average oil level value.
  24. Repeat step  14 to  20 to access the oil level display in service mode.

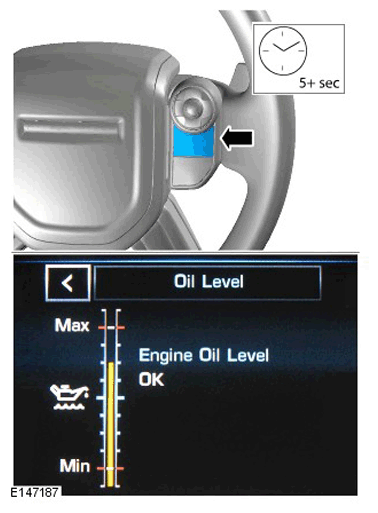

  25. NOTE: The actual volume displayed on the bar graph will be written into the electronic control unit as a new value.
    G11286433Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press and hold the speed control cancel button for more than 5 seconds.
    • The message center display the current oil level.
  26. Set the ignition to the OFF position.
  27. Set the ignition to the ON position.
  28. G11286426Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.

  29. G11286427Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand directional button and select Service Menu.

  30. G11286428Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand OK button.

  31. G11286429Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Press the left-hand directional button and select the Oil Level display.

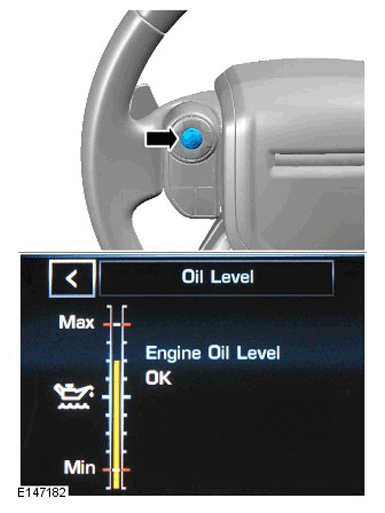

  32. G11286438Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Press the left-hand OK button and follow the instructions.
    • NOTE: If the message shows "Not available" wait for further 10 minutes to allow the oil level to stabilize.

    Make sure that the average oil level value has now been updated.
