Lubrication System: Notes
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

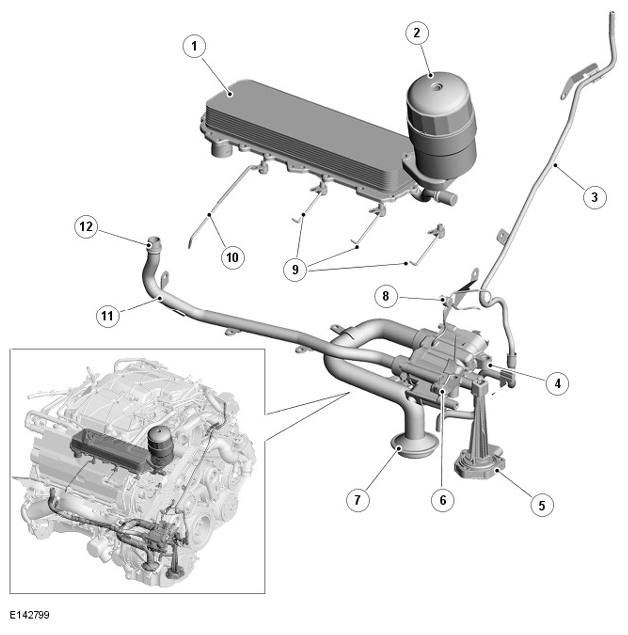

| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil cooler |
| 2 | Oil filter |
| 3 | Oil evacuation tube |
| 4 | Oil pump |
| 5 | Oil level and temperature sensor |
| 6 | Lower timing chain lubrication jet |
| 7 | Oil pick-up |
| 8 | Upper timing chain lubrication jet |
| 9 | Piston cooling jets |
| 10 | Rear dynamic balancer drive chain lubrication jet |
| 11 | Oil pump outlet tube |
| 12 | Outlet tube connection with right cylinder block |
