Major Structural Components

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

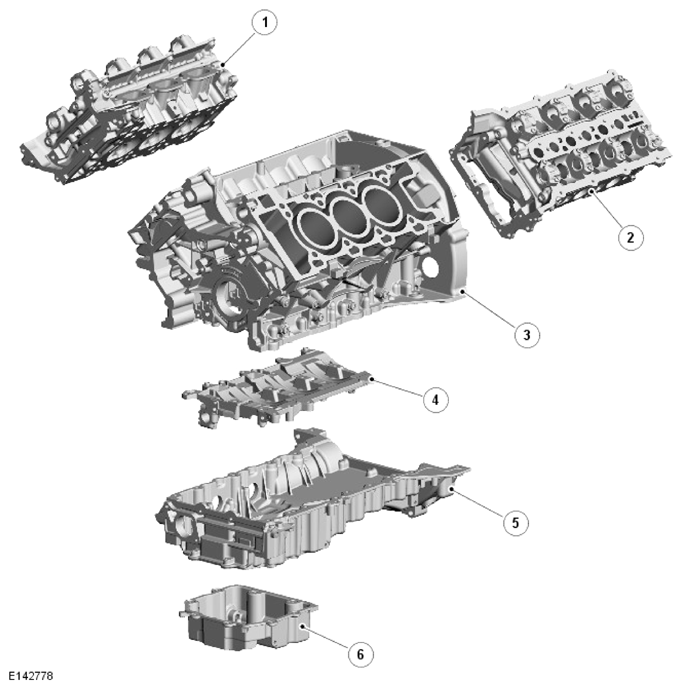

G14015684Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Right cylinder head (bank 1)
2 Left cylinder head (bank 2)
3 Cylinder block
4 Windage tray
5 Oil pan body
6 Oil pan
