Starter Motor: Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: ENGINE UNDERSHIELD
  4. G11293772Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. NOTE: Vehicles with stop/start.

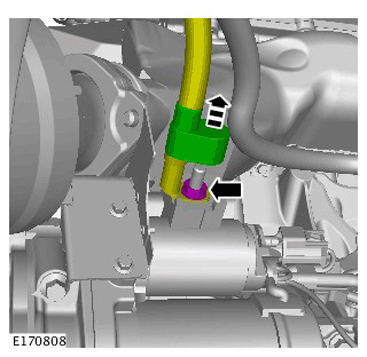

    G11293786Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

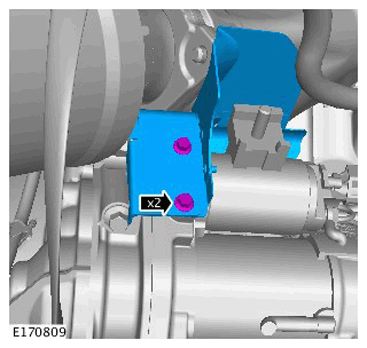

  6. G11293787Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 6 Nm

  7. G11285540Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. G11285162Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. NOTE: Vehicles with stop/start.
    G11293790Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

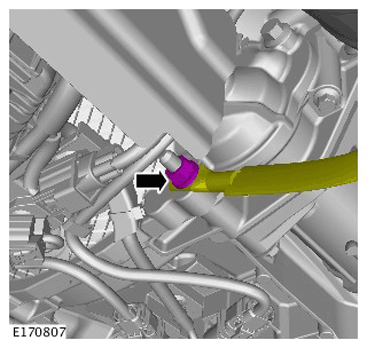

  10. G11293791Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 48 Nm

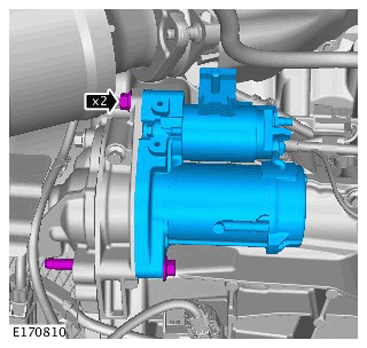

  11. G11293792Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 48 Nm
