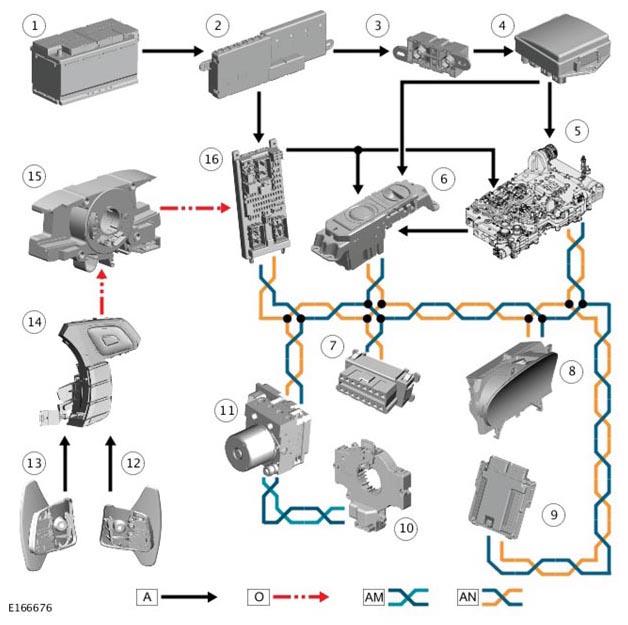

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; O
= LIN (Local Interconnect Network) bus; AM
= HS (High Speed) CAN (Controller Area Network) Chassis bus; AN
= HS CAN Powertrain bus.
| Item | Description |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Megafuse |
| 4 | Engine Junction Box (EJB) |
| 5 | Transmission Control Module (TCM) |
| 6 | Transmission Control Switch (TCS) |
| 7 | Diagnostic socket |
| 8 | Instrument Cluster (IC) |
| 9 | Engine Control Module (ECM) |
| 10 | Steering Angle Sensor Module (SASM) |
| 11 | Anti-lock Brake System (ABS) control module |
| 12 | Upshift paddle switch |
| 13 | Downshift paddle switch |
| 14 | Right steering wheel switchpack |
| 15 | Clockspring |
| 16 | Central Junction Box (CJB) |
