Windshield Wiper Pivot Arm : Installation
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
- Install the wiper blade.
-
NOTE:

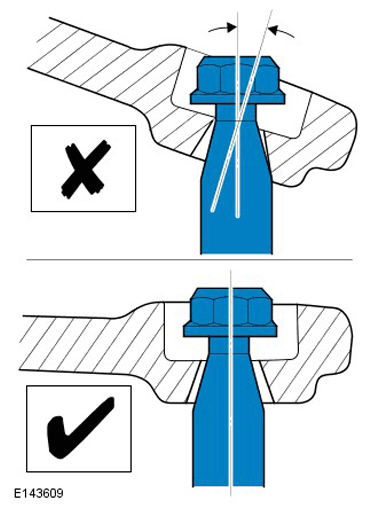

Apply hand pressure to the wiper arm to make sure of correct seating on the spindle.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
NOTE:

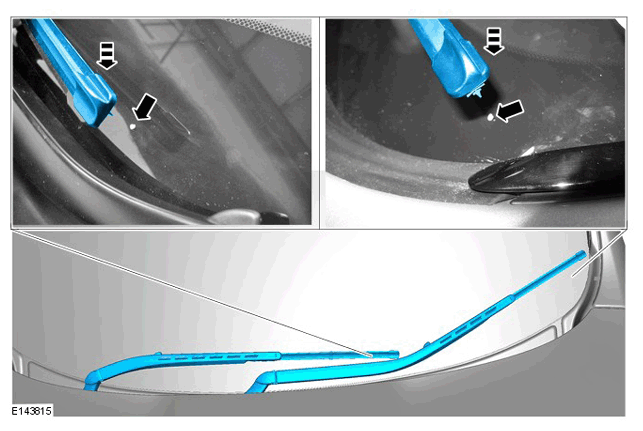

Position the wiper blade to aline with the dot on windscreen (Please note the dot is highlighted for clarity only).
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
