Windshield Wiper Motor - LHD RWD: Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Refer to: SECONDARY BULKHEAD LEFT PANEL

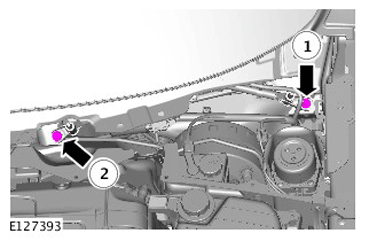

  3. CAUTION: Tighten the bolts in the sequence shown.
    G11290144Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 11 Nm

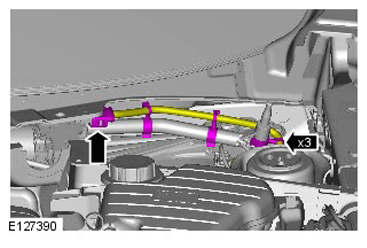

  4. G11290145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

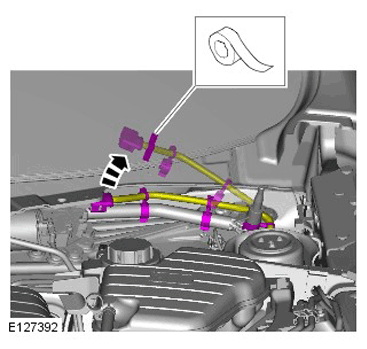

  5. G11290146Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

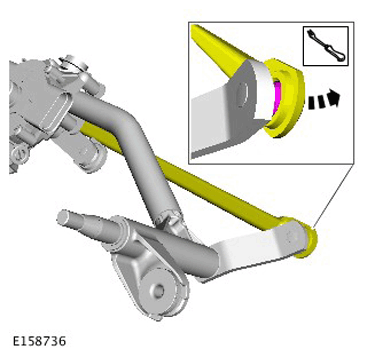

  6. NOTE:
    • Component shown removed for clarity.
    • RHD illustration shown, LHD is similar.
    G11290147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the link arm from the pivot to assist removal of the wiper motor assembly.

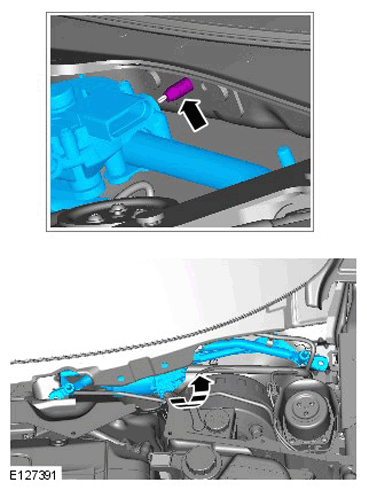

  7. CAUTION:
    • Make sure that the component is correctly located on the locating dowels.
    • Protect the surrounding trim from damage when changing the component.
    G11290148Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
