Windshield Washer Reservoir : Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE:

Removal steps in this procedure may contain installation details.
The ignition must be switched off.

CAUTION: Make sure that the clip is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the RH front wheel and tire.
Refer to: WHEEL AND TIRE
CAUTION: LH illustration shown, RH is similar.

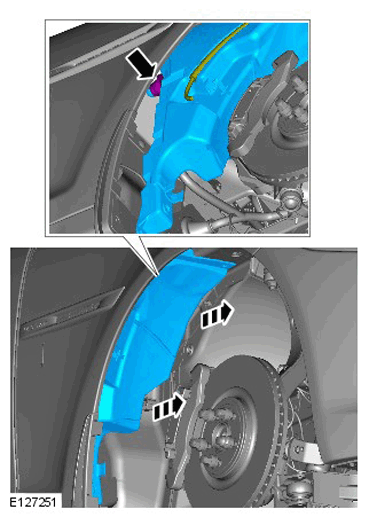

Remove the front RH fender splash shield.

Refer to: FENDER SPLASH SHIELD
CAUTION:

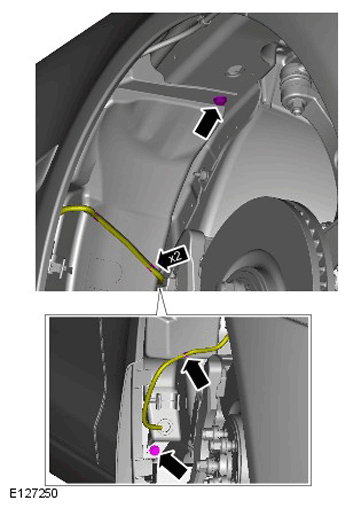

- Be prepared to collect escaping fluids.
- Note the routing of the lines and hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

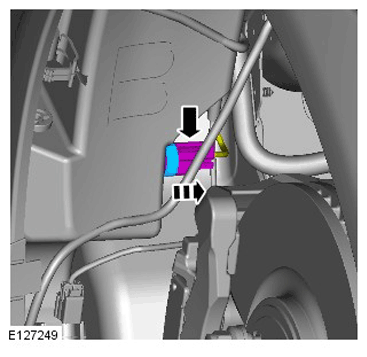

CAUTION:
- Be prepared to collect escaping fluids.
- Note the routing of the lines and hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

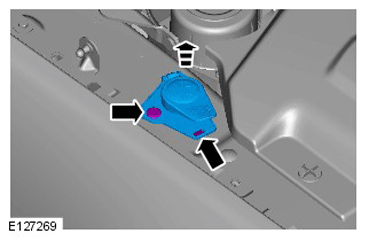

CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

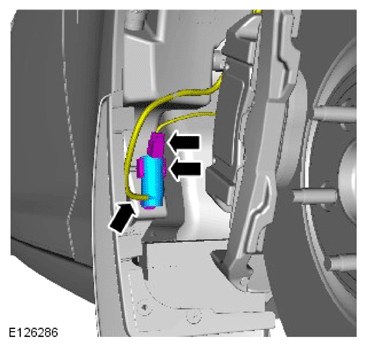

NOTE: Support as necessary.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 4.1 Nm
CAUTION:
- Make sure that the component is correctly located on the locating dowels.
- Protect the surrounding components.

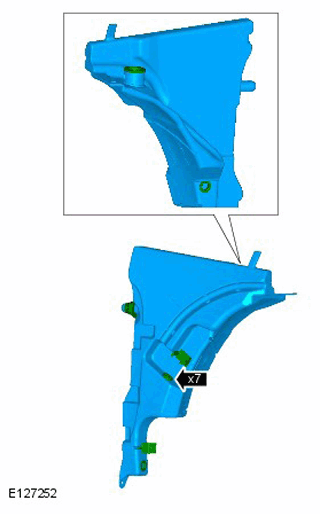

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
