Windshield Washer Pump : Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the RH front wheel and tire.

    Refer to: WHEEL AND TIRE

  3. Refer to: FENDER SPLASH SHIELD

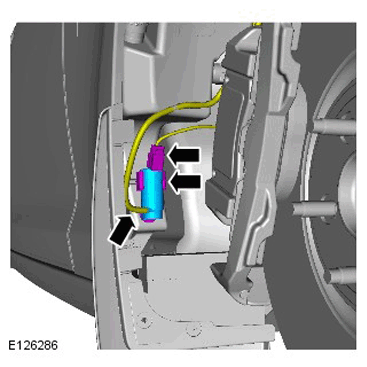

  4. CAUTION: Be prepared to collect escaping fluids.
    G11290139Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
