Rain Sensor : Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure the ignition is OFF at all times during the replacement procedure.
Care must be taken to avoid damaging the surrounding components.
After removal and installation of the rain sensor, wait 10 minutes before the calibration routine is completed. Failure to follow this instruction may result in calibration failure.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to: All vehicles

Remove the interior rear view mirror.
Refer to: INTERIOR REAR VIEW MIRROR .

The following step(s) applies to: Vehicles built up to 2014
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the retainers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the rain sensor.
The following step(s) applies to: Vehicles built 2015 onwards
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

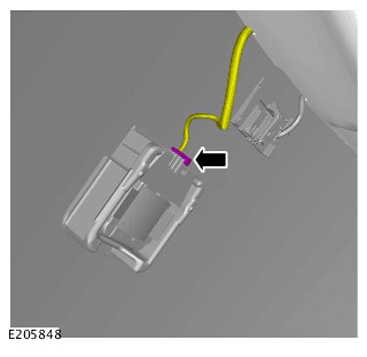

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

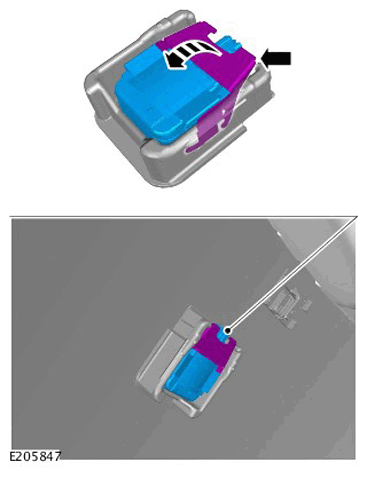

- Carefully release the clips.
- Remove the rain sensor.
