Washer Fluid Reservoir And Washer Pumps

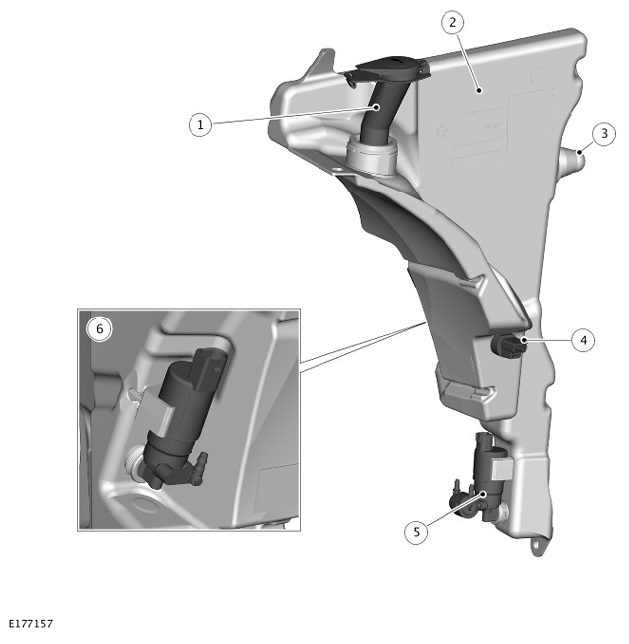

| ITEM | DESCRIPTION |
|---|---|
| 1 | Washer fluid reservoir filler neck and cap |
| 2 | Washer fluid reservoir |
| 3 | Rubber locating grommet |
| 4 | Washer fluid level sensor |
| 5 | Windshield washer pump |
| 6 | Headlamp washer pump |
The washer fluid reservoir is located behind the front right wheel, behind the wheel arch liner. The washer fluid reservoir is a plastic moulding and is secured in the wheel arch to the body with two screws.
A level sensor is located in the washer fluid reservoir and is connected to the CJB through a hardwired connection. A windshield washer pump and a headlamp washer pump are located at the base of the washer fluid reservoir. The windshield washer pump supplies washer fluid to the windshield washer jets. The headlamp washer pump supplies fluid to the left and right headlamp washer jets.
A filler cap is located at the top of the washer fluid reservoir and is accessible from the engine compartment.
The washer pumps are located in rubber sealing grommets in holes in the washer fluid reservoir and secured with clips. The washer fluid hoses have quick release connectors which mate with the pumps. The fluid level sensor is a push fit into a sealing grommet in one side of the washer reservoir body.
