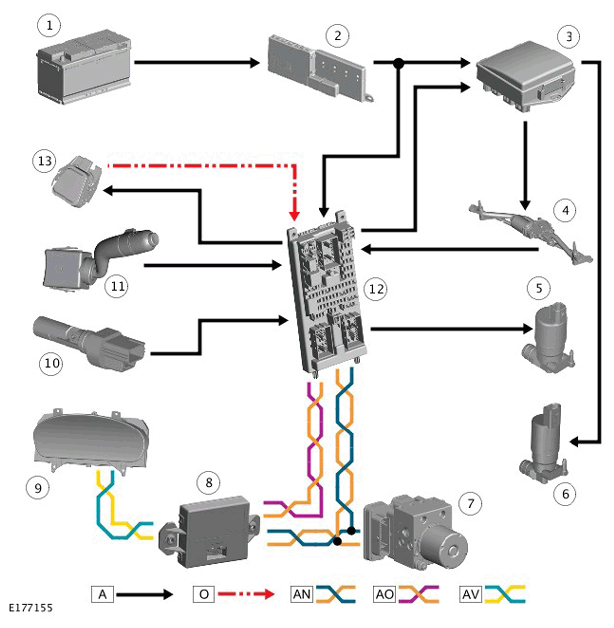

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; O
= Local Interconnect Network (LIN) bus; AN
= High Speed (HS) Controller Area Network (CAN) powertrain systems bus; AO
= Medium Speed (MS) CAN
body systems bus; AV
= HS CAN
comfort systems bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Engine Junction Box (EJB) |
| 4 | Windshield wiper motor |
| 5 | Windshield washer pump |
| 6 | Headlamp washer pump |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Gateway Module (GWM) |
| 9 | Instrument Cluster (IC) |
| 10 | Washer fluid level sensor |
| 11 | Wipers and washers control switch |
| 12 | Central Junction Box (CJB) |
| 13 | Rain/light sensor |
